Air Blower Manufacturer,Supplier and Exporter in India
Product Code : JL-LEP-10401

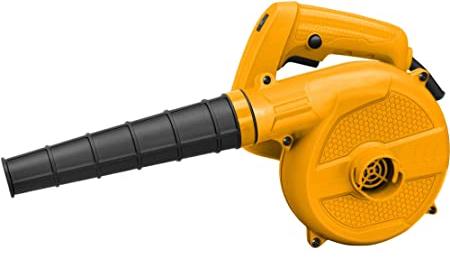

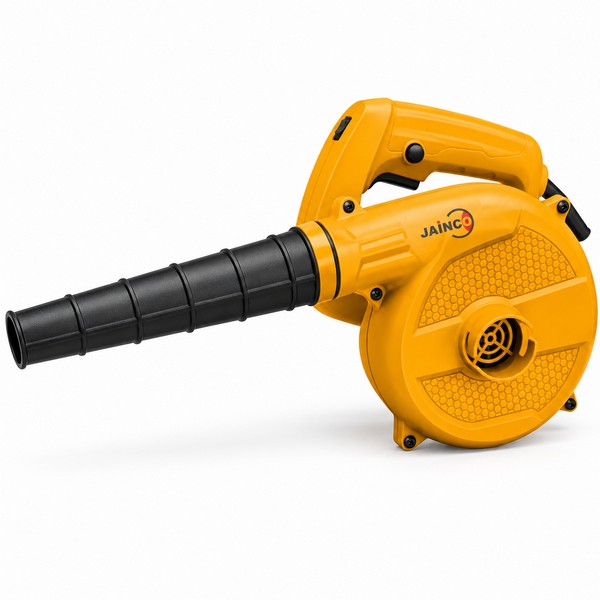

The Air Blower (SKU JL-LEP-10401) is a 400 W volute-type air blower with variable speed control from 0 to 12000 rpm, used to blow air under light balls and keep them airborne to demonstrate Bernoulli’s principle. The air blower has a 150 mm volute, a 35 mm exhaust and a soft rubber nozzle tapered to 22 mm, and runs on 220–240 V AC. JaincoLab manufactures it in India for physics laboratories.
Specifications
The air blower has a 400 W electric volute-type motor with variable speed control from 0 to 12000 rpm, a volute of at least 150 mm diameter, an exhaust of at least 35 mm diameter and 110 mm tangential length, and a 165 mm soft rubber nozzle tapered to 22 mm.
| Product | Air Blower |
| SKU | JL-LEP-10401 |
| Purpose | Blows air into light balls to keep them airborne, demonstrating Bernoulli’s principle |
| Motor | Electric, volute type, 400 W, variable speed control, 0–12000 rpm |
| Power supply | 220–240 V AC, 60 Hz |
| Volute diameter | 150 mm minimum |
| Exhaust diameter | 35 mm minimum |
| Exhaust tangential length | 110 mm minimum |
| Nozzle | Soft rubber, fits the exhaust, tapered to 22 mm, 165 mm long |
| Specification reference | As per DepEd guidelines |
Applications of the air blower
A light ball held in the upward air stream stays suspended because the faster-moving air around it has lower pressure, so the blower gives a clear classroom demonstration of Bernoulli’s principle and of airflow.
- Suspending a light ball in an air jet to demonstrate Bernoulli’s principle
- Showing that the ball stays in the stream when the jet is tilted
- Varying the speed control to relate airflow speed to lift
- Supplying air for airflow and fluid-pressure demonstrations
- Fluid mechanics lessons in secondary physics and college courses
Scope of supply and ordering
The listing covers the 400 W air blower with its soft rubber nozzle as described in the specification table. Light balls, accessories and quantities are confirmed on the quotation.
Frequently asked questions
What is the motor rating?
400 W, electric volute type, with variable speed control from 0 to 12000 rpm.
What power supply does it need?
220–240 V AC, 60 Hz.
What nozzle is supplied?
A soft rubber nozzle that fits the exhaust, tapered to 22 mm and 165 mm long.
What is it used to demonstrate?
Bernoulli’s principle, by keeping light balls airborne in the air stream.
Related products
Fluids and pressure apparatus often ordered with the air blower:
- Archimedes Principle Set
- Vacuum Tube and Manual Vacuum Pump
- Manometer Open U-Tube
- Sphere - Polystyrene
More physics apparatus is listed in the Laboratory Equipment Products range of JaincoLab, a physics lab equipment manufacturer in India.
Request a quote
For a quotation on the Air Blower, send the quantity and delivery destination through the JaincoLab contact page or email [email protected]. Tender and project enquiries can be sent through the tenders page.
