All Purpose Dissecting Microscope Manufacturer,Supplier and Exporter in India

Product Code : JA-M-8042
Jainco Lab is a leading All Purpose Dissecting Microscope Manufacturer,and suppliers in India, All Purpose Dissecting Microscope Manufacturer,and suppliers in South Africa, All Purpose Dissecting Microscope Algeria (Algiers), All Purpose Dissecting Microscope Angola (Luanda), All Purpose Dissecting Microscope Argentina (Buenos Aires), All Purpose Dissecting Microscope Armenia (Yerevan), All Purpose Dissecting Microscope Australia (Canberra), All Purpose Dissecting Microscope Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

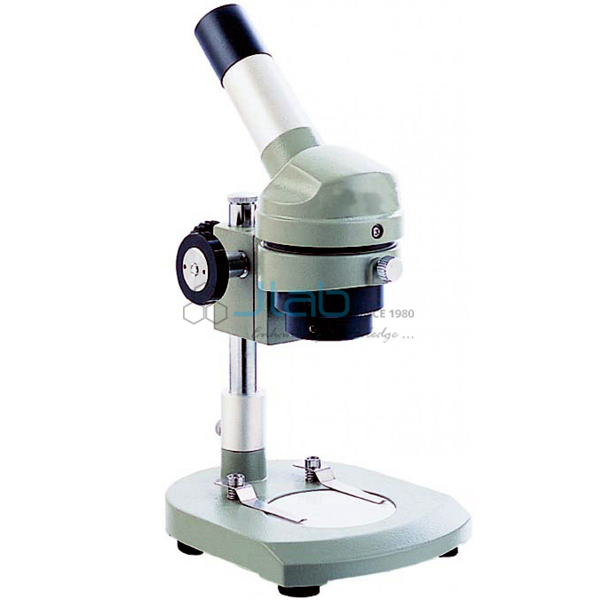

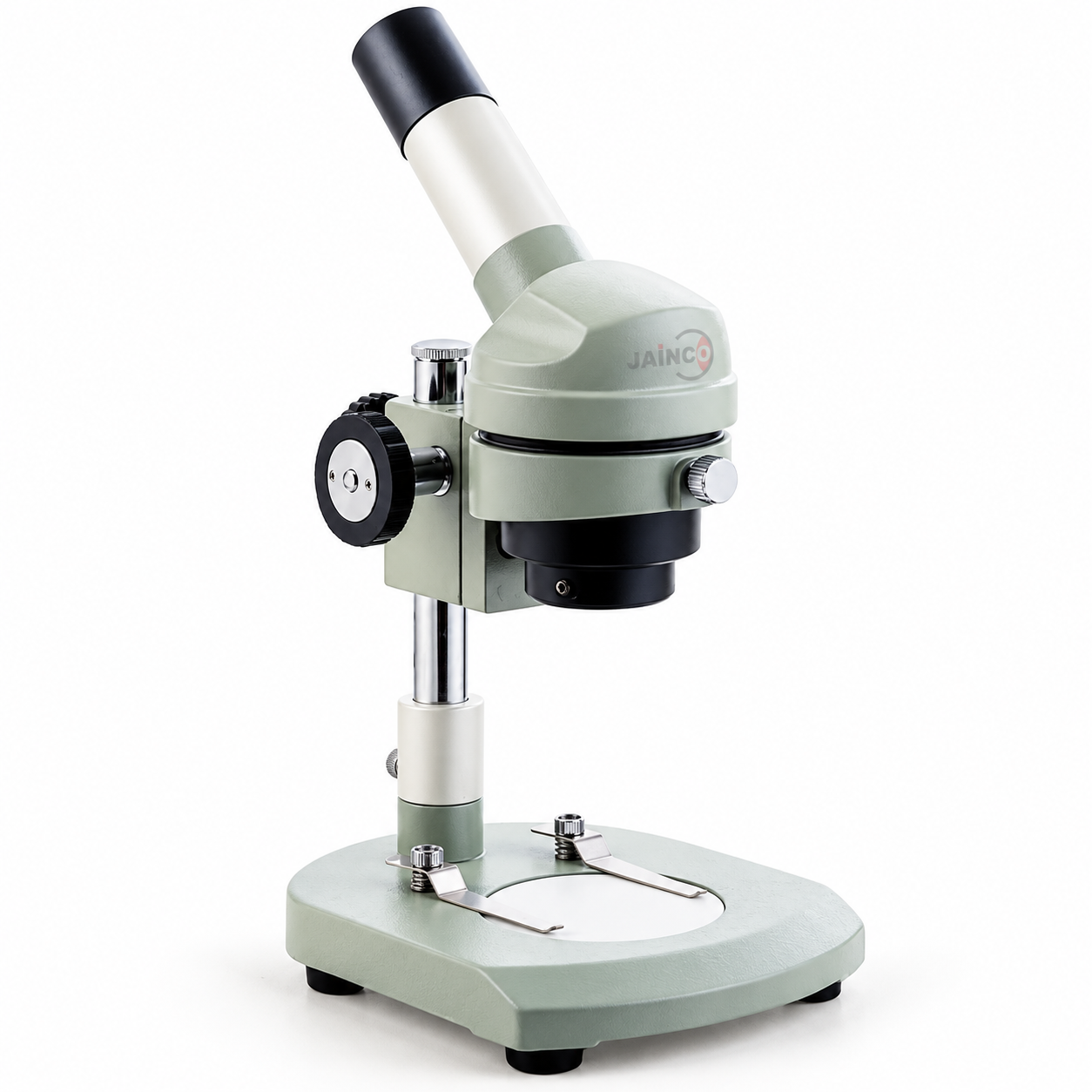

All Purpose Dissecting Microscope

Jainco beginner dissecting microscope is constructed with an all-metal frame and a 360° rotatable inclined head.

It contains a locked-on 10X wide-field eyepiece with a 2X objective which provides a total magnification of 20X.

This beginner microscope allows users to examine flowers, insects, coins, stamps, rocks, and other objects.

Specification:-

Viewing Head: Monocular head, 360° rotating inclined at 45°

Eyepiece: Locked-on 10X Wide-Field eyepieces. Glass optics provide quality images

Objectives: 2X objective is installed onto the microscope

Design: All-metal frame

Focusing System: Coarse focus control with rack and pinion mechanisms. Working distance is 7.4cm with a maximum specimen height of 4cm. Slip-clutch for focusing assembly to prevent damage to the rack and pinion mechanism.

Stage: Large 14 x 11cm stage with a black and white plate that is 6cm in diameter. Locked-on, spring-loaded stage clips for exact positioning of the specimen.

Illumination: Light reflected from stage plate is used as a source of illumination. No batteries required
