Automated Batch Distillation Pilot Plant Manufacturer,Supplier and Exporter in India
Product Code : JA-CELE-9498

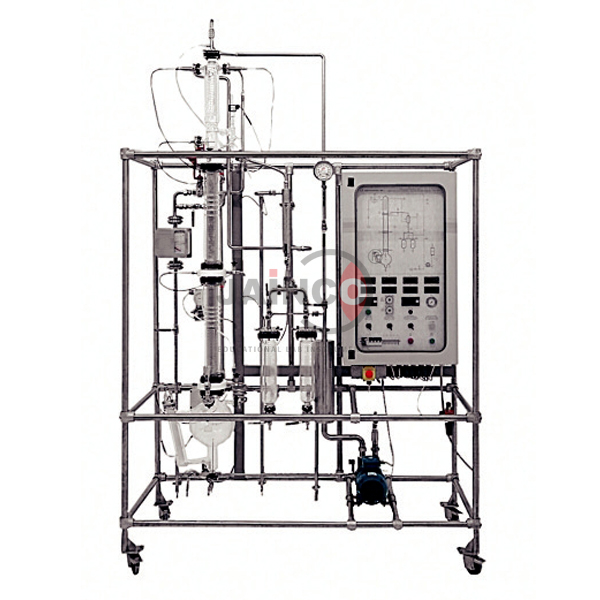

The Automated Batch Distillation Pilot Plant (SKU JA-CELE-9498) is a packed-column batch distillation unit with automatic control of reflux and column pressure. Its 1,100 mm column with stainless steel mesh packing rises from a 5 litre reboiler with a 2,500 W heater, and a solenoid-valve reflux head, a DN15 pneumatic control valve and a 0-1000 mbar absolute pressure transmitter allow controlled vacuum operation. This automated batch distillation plant is supplied by JaincoLab for chemical engineering laboratories and process training centres.
Specifications
The plant combines a 1,100 mm packed column, a 5 litre reboiler with 2,500 W heater and thyristor control, a liquid ring vacuum pump of 700 W, eight thermocouples with electronic indicators, differential pressure display and 4-20 mA flow and pressure instrumentation.
| Product | Automated Batch Distillation Pilot Plant |
| SKU | JA-CELE-9498 |
| Column | Height 1,100 mm, stainless steel mesh packing |
| Reboiler | 5 litres, 2,500 W electric heater, thyristor power control |
| Reflux | Reflux head with solenoid valve; 2 programmable timers |
| Distillate collection | 2 graduated tanks, 1 litre each |
| Heat exchangers | Tube-in-tube, stainless steel |
| Temperature | 8 thermocouples in stainless steel sleeves, 8 electronic indicators |
| Flow | Condenser flow meter 0-250 litres/hour; variable-area flow meter 0-250 l/h, 4-20 mA |
| Pressure control | Pneumatic control valve DN15, Cv 2.5; E/P converter 4-20 mA / 0.2-1 bar; absolute pressure transmitter 0-1000 mbar, 4-20 mA |
| Vacuum | Liquid ring vacuum pump 700 W with air/water separator and check valve; gauge 1 to 0 bar |
| Other | Differential pressure indicator; electrical control panel; emergency stop |
Applications of the automated batch distillation plant
Students run packed-column batch distillation at controlled reflux and column pressure, measuring the pressure drop across the packing and the temperature profile up the column.
- Packed-column batch distillation at controlled reflux ratio
- Vacuum distillation with automatic pressure control
- Pressure drop across the packing and flooding studies
- Control loop practice with pneumatic valve and 4-20 mA transmitters
- Advanced mass transfer and process control practicals
Scope of supply and ordering
This listing covers the automated batch distillation pilot plant with packed column, reboiler, reflux head, heat exchangers, vacuum pump, control valve and instrumentation listed above. Compressed air for the pneumatic valve, cooling water and power supply are also confirmed on the quotation.
Frequently asked questions
What type of column is used?
A 1,100 mm column with stainless steel mesh packing.
How is column pressure controlled?
A DN15 pneumatic control valve (Cv 2.5) with an E/P converter works with a 0-1000 mbar absolute pressure transmitter and a 700 W liquid ring vacuum pump.
How is reflux controlled?
By a solenoid valve at the reflux head, timed by two programmable timers.
Related products
- Manual Batch Distillation Pilot Plant with Data
- Batch Distillation Pilot Plant
- Continuous Distillation Pilot Plant
- Manual Continuous Distillation Pilot Plant
More chemical engineering and training units are listed in the training workshop labs range from JaincoLab.
Request a quote
Send an enquiry for the Automated Batch Distillation Pilot Plant (SKU JA-CELE-9498) with the quantity and delivery destination using the JaincoLab contact page or by email to [email protected]. Buying under a laboratory tender? Use our tenders page.
