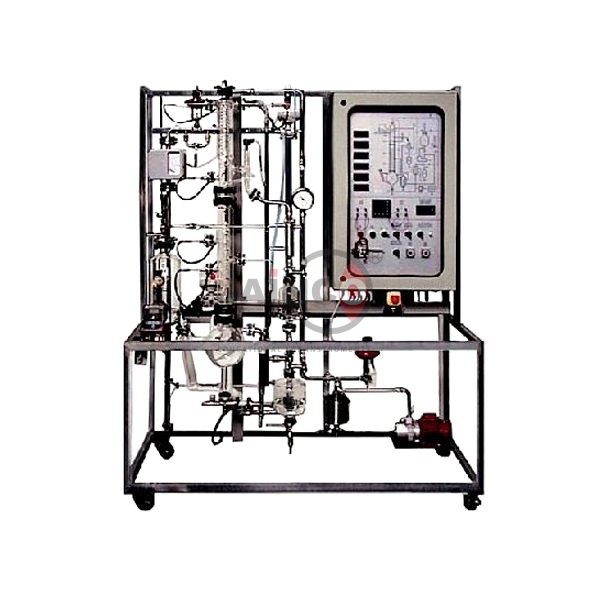

Manual Continuous Distillation Pilot Plant Manufacturer,Supplier and Exporter in India
Product Code : JA-CELE-9502
The Manual Continuous Distillation Pilot Plant (SKU JA-CELE-9502) is a bubble cap continuous distillation unit that can also run under vacuum. A metering pump feeds 0 to 8.5 litres/hour from a 5 litre tank into a 600 mm column with 7 bubble cap trays above a 3 litre reboiler with a 1600 W heater, and distillate and bottoms are collected in 1 litre and 2 litre tanks. This continuous bubble cap distillation plant is supplied by JaincoLab for chemical engineering laboratories in colleges and polytechnics.
Specifications
The plant has a 600 mm column with 7 bubble cap trays, a 3 litre reboiler with 1600 W heater and thyristor control, a condenser with reflux head and two reflux timers, three tube-in-tube heat exchangers, six digital thermometers with electronic indicators and a vacuum circuit with trap and 0 to 1 bar gauge.
| Product | Manual Continuous Distillation Pilot Plant |
| SKU | JA-CELE-9502 |
| Column | Height 600 mm, 7 bubble cap trays |
| Reboiler | 3 litres, 1600 W electric heater, thyristor power control |
| Feed | 5 litre feed tank; metering pump 0-8.5 litres/hour |
| Product tanks | Distillate 1 litre; bottoms 2 litres |
| Condenser | With reflux head; 2 programmable timers for reflux ratio |
| Heat exchangers | 3 tube-in-tube |
| Temperature | 6 digital thermometers in stainless steel sleeves, 6 electronic indicators |
| Flow meter | Variable-area, 20-250 litres/hour |
| Vacuum | Vacuum circuit with trap; gauge 0 to 1 bar |
| Pipework and controls | Stainless steel pipework; electrical control panel; emergency stop |
Experiments with the continuous bubble cap distillation plant
Students run the column continuously at chosen feed rates, reflux ratios and pressures, reach steady state and check the separation by sampling distillate and bottoms.
- Continuous distillation with bubble cap trays
- Operation under vacuum using the vacuum circuit
- Effect of reflux ratio and feed rate on product purity
- Steady-state material and energy balances
- Mass transfer operations practicals and projects
Scope of supply and ordering
This listing covers the manual continuous distillation pilot plant with column, reboiler, condenser, metering pump, tanks, heat exchangers, instruments and vacuum circuit. Vacuum source, cooling water and power supply are also confirmed on the quotation.
Frequently asked questions
What trays does the column use?
Seven bubble cap trays in a 600 mm column.
What is the feed rate range?
0 to 8.5 litres/hour from the metering pump.
Can it operate under vacuum?
Yes, it has a vacuum circuit with trap and a 0 to 1 bar gauge.
