Liquid Chromatography Digital System Manufacturer,Supplier and Exporter in India
Product Code : JA-CELE-9106

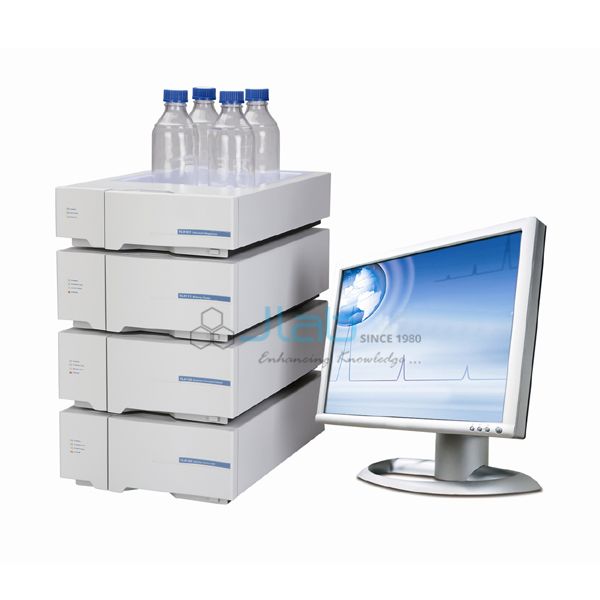

The Liquid Chromatography Digital System (SKU JA-CELE-9106) is a modular HPLC system for separating and quantifying compounds in chemical, pharmaceutical and research laboratories. It is listed with a choice of quaternary (low-pressure gradient) or binary (high-pressure gradient) dual-plunger pumps, a 4-channel vacuum degasser, a column compartment from 4 to 90°C, and UV/Vis, PDA and RI detectors. This HPLC system for laboratory use is supplied by JaincoLab for chemical engineering, pharmacy and analytical chemistry laboratories.
Specifications
The system combines a quaternary or binary dual-plunger pump, a 4-channel vacuum degasser, a column compartment holding up to three 30 cm analytical columns, and UV/Vis (190-900 nm), PDA (1024 channels, 190-950 nm) and RI (1.00-1.75 RIU) detectors; the configuration is confirmed on the quotation.
| Product | Liquid Chromatography Digital System |
| SKU | JA-CELE-9106 |
| Quaternary pump | Parallel dual-plunger, low-pressure gradient, up to 4 solvents, 4-channel mixing valve |
| Composition precision / accuracy | < 0.1% / < 0.5% (quaternary pump) |
| Binary pump | Double parallel dual-plunger, high-pressure gradient |
| Vacuum degasser | 4 channels; max. 10 ml/min per channel; 0-2.0 ml/min per channel for 70% gas removal from methanol; 925 µl internal volume per channel |
| Degasser wetted materials | Teflon AF, PEEK, glass-filled PTFE |
| Column compartment | 4°C (cooling) to 90°C; stability ±0.05°C; accuracy ±0.5°C; up to 3 x 30 cm analytical or 2 x 30 cm semi-prep columns |
| UV/Vis detector | 190-900 nm, dual wavelength; up to 50 Hz; noise < ±0.5 x 10^-5 AU (254 nm, dry cell); drift < 1 x 10^-4 AU/hr; linearity > 99.5% at 2.5 AU |
| PDA detector | 1024 channels; 190-950 nm; noise 2 x 10^-5 AU; drift 2 x 10^-4 AU/hr; wavelength accuracy 1 nm |
| RI detector | 1.00-1.75 RIU; noise not more than 5 x 10^-9 RIU (analytical); flow cell 9 µl (analytical) / 7 µl (semi-prep) |
Applications of the HPLC system for laboratory use
The system is used to separate, identify and quantify the components of liquid samples, with the detector chosen to suit the compounds: UV/Vis or PDA for UV-absorbing compounds and RI for sugars and other non-absorbing analytes.
- Quantitative analysis of reaction products in chemical engineering labs
- Pharmaceutical analysis practicals in pharmacy colleges
- Method development with quaternary low-pressure gradients
- High-pressure gradient separations with the binary pump
- Semi-preparative separations on 30 cm semi-prep columns
Scope of supply and ordering
This listing covers the liquid chromatography system in the configuration agreed on the quotation - pump type, degasser, column compartment and the selected UV/Vis, PDA or RI detector. Columns, data software, computer and installation are also confirmed on the quotation.
Frequently asked questions
Which pump options are listed?
A quaternary parallel dual-plunger pump with low-pressure gradient for up to 4 solvents, or a binary pump with high-pressure gradient.
Which detectors are available?
A dual-wavelength UV/Vis detector (190-900 nm), a 1024-channel PDA detector (190-950 nm) and an RI detector (1.00-1.75 RIU).
What is the column oven range?
4°C with cooling up to 90°C, with ±0.05°C stability, for up to three 30 cm analytical columns.
