Manual Stirred Continuous Reaction Pilot Plant With Reactors In Series Manufacturer,Supplier and Exporter in India
Product Code : JA-CELE-9512

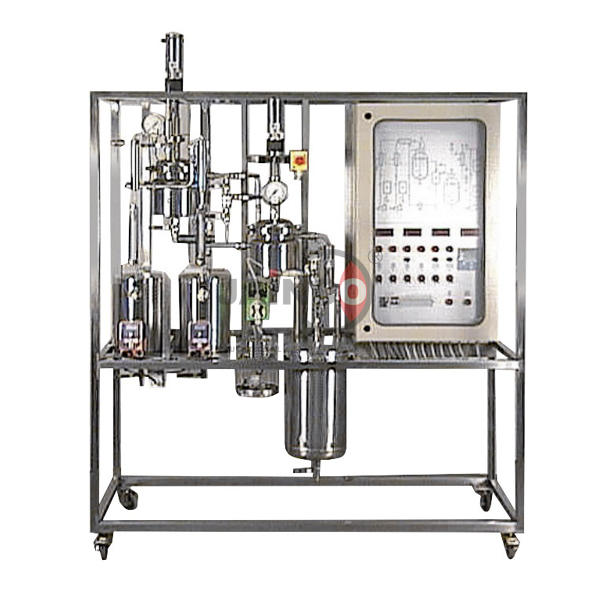

The Manual Stirred Continuous Reaction Pilot Plant With Reactors In Series (SKU JA-CELE-9512) is a two-stage continuous stirred tank reactor (CSTR) unit for reaction engineering practicals. Two 3 litre reactors, each with a variable speed stirrer and electric heater, are fed by two metering pumps of 0 to 8.4 litres per hour from 10 litre tanks, and conversion is followed by two conductivity meters. A neutralising solution is dosed before collection. This CSTRs-in-series plant is supplied by JaincoLab for chemical engineering laboratories.
Specifications
The plant has two 3 litre reactors in series with variable speed stirrers and electric heaters, two 10 litre feed tanks, two metering pumps of 0-8.4 litres/hour, two conductivity meters, four Pt100 temperature points, a 2 litre neutralising tank with a 1.5 litres/hour pump and a 20 litre collecting tank.
| Product | Manual Stirred Continuous Reaction Pilot Plant With Reactors In Series |
| SKU | JA-CELE-9512 |
| Reactors | 2 x 3 litres, in series, variable speed stirrers, electric heaters |
| Feed | 2 tanks of 10 litres; 2 metering pumps 0-8.4 litres/hour |
| Measurement | 2 electronic conductivity meters; 4 thermocouples with Pt100 probes; 4 electronic temperature indicators |
| Neutralisation | 2 litre tank; metering pump up to 1.5 litres/hour |
| Collecting tank | 20 litres |
| Controls | Electrical control panel in main cabinet; emergency stop |
Experiments with the CSTRs-in-series plant
Students feed two reagents continuously, reach steady state and compare conversion after the first and second reactor to see how staging improves conversion.
- Steady-state conversion in a continuous stirred tank reactor
- Comparing one CSTR with two CSTRs in series
- Effect of residence time and temperature on conversion
- Residence time distribution studies with a conductivity tracer
- Reaction engineering practicals in B.Tech/B.E. chemical engineering
Scope of supply and ordering
This listing covers the continuous reaction plant with both reactors, stirrers, heaters, feed tanks, metering pumps, conductivity meters, temperature instruments, neutralising system and collecting tank.
Single units for one laboratory and complete sets for institutions or projects are both supplied.
Frequently asked questions
How many reactors are there?
Two 3 litre stirred reactors connected in series.
What are the feed rates?
Two metering pumps each deliver 0 to 8.4 litres per hour.
How is conversion measured?
With two electronic conductivity meters, one per reactor.
