Manual Batch Distillation Pilot Plant Manufacturer,Supplier and Exporter in India
Product Code : JA-CELE-9500

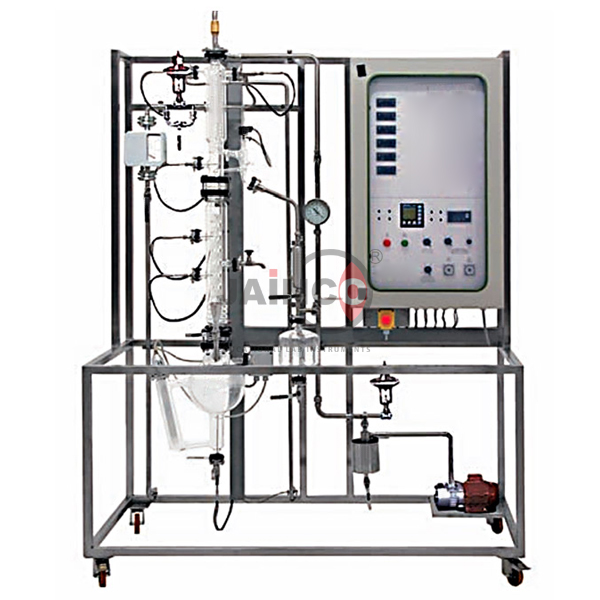

The Manual Batch Distillation Pilot Plant (SKU JA-CELE-9500) is a bubble cap batch distillation unit with PID control of condenser cooling water and column residual pressure. A 600 mm column with 7 bubble cap trays sits on a 4 litre reboiler with a 1600 W heater, and pneumatic valves driven by electro-pneumatic converters work with a 0-1000 mbar residual pressure transmitter and a microprocessor PID controller. This vacuum batch distillation plant is supplied by JaincoLab for chemical engineering and process control laboratories.
Specifications
The plant has a 600 mm column with 7 bubble cap trays, a 4 litre reboiler with 1600 W heater and thyristor control, a condenser with reflux head, stainless steel tube-in-tube heat exchangers, a 1 litre distillate tank, six thermocouples with electronic indicators and a vacuum circuit with trap and 0 to 1 bar gauge.
| Product | Manual Batch Distillation Pilot Plant |
| SKU | JA-CELE-9500 |
| Column | Height 600 mm, 7 bubble cap trays |
| Reboiler | 4 litres, 1600 W electric heater, thyristor power control |
| Condenser | With reflux head; programmable timers for reflux ratio |
| Distillate tank | 1 litre |
| Heat exchangers | Tube-in-tube, stainless steel |
| Temperature | 6 thermocouples in stainless steel sleeves, 6 electronic indicators |
| Pressure control | Stainless steel residual pressure transmitter 0-1000 mbar, 4-20 mA; stainless steel pneumatic valve for residual pressure |
| Cooling water control | Stainless steel pneumatic valve on condenser cooling water |
| Controller | Microprocessor digital PID controller with serial card; 2 E/P converters 0.2-1.0 bar, 4-20 mA |
| Vacuum | Vacuum circuit with trap; gauge 0 to 1 bar; stainless steel pipework and valves |
Experiments with the bubble cap vacuum batch distillation plant
Students distil a mixture under controlled vacuum, tune the PID loops for residual pressure and condenser cooling, and compare separation at different pressures and reflux ratios.
- Batch distillation at atmospheric pressure and under vacuum
- PID control of column residual pressure
- PID control of condenser cooling water
- Effect of reflux ratio on separation
- Combined mass transfer and process control practicals
Scope of supply and ordering
This listing covers the manual batch distillation pilot plant with column, reboiler, condenser, heat exchangers, instruments, PID controller, pneumatic valves and vacuum circuit. Compressed air, vacuum source, cooling water and power supply are also confirmed on the quotation.
Single units for one laboratory and complete sets for institutions or projects are both supplied.
Frequently asked questions
What trays does the column have?
Seven bubble cap trays in a 600 mm column.
Which variables are PID-controlled?
Column residual pressure, via a 0-1000 mbar transmitter and pneumatic valve, and condenser cooling water, via a second pneumatic valve.
Can it run under vacuum?
Yes, it has a vacuum circuit with trap and a 0 to 1 bar vacuum gauge.
