Manual Batch Distillation Pilot Plant with Data Manufacturer,Supplier and Exporter in India
Product Code : JA-CELE-9497

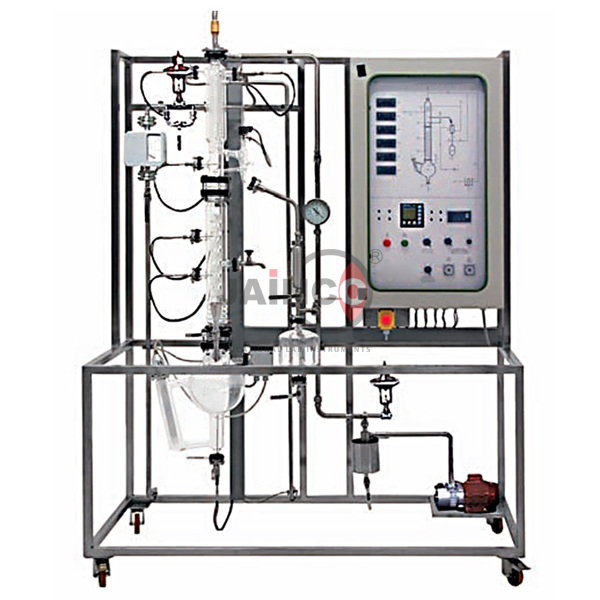

The Manual Batch Distillation Pilot Plant with Data (SKU JA-CELE-9497) is a bench-scale batch distillation unit with PC data acquisition for chemical engineering mass transfer laboratories. A 600 mm column with 7 bubble cap trays sits on a 4 litre reboiler with a 1600 W heater, topped by a condenser with reflux head whose reflux ratio is set by two programmable timers. Six thermocouples, a 4-20 mA flow meter and Windows data acquisition software record the run. It is supplied by JaincoLab for colleges and research laboratories.
Specifications
The plant has a 600 mm column with 7 bubble cap trays, a 4 litre reboiler with 1600 W heater and thyristor power control, a 1 litre distillate tank, stainless steel tube-in-tube heat exchangers and a vacuum circuit with trap and 1 to 0 bar gauge.
| Product | Manual Batch Distillation Pilot Plant with Data |
| SKU | JA-CELE-9497 |
| Column | Height 600 mm, 7 bubble cap trays |
| Reboiler | 4 litres, 1600 W electric heater, thyristor power control |
| Condenser | With reflux head; 2 programmable timers for reflux ratio |
| Distillate tank | 1 litre |
| Heat exchangers | Tube-in-tube, stainless steel |
| Temperature | 6 thermocouples in stainless steel sleeves, 6 electronic indicators |
| Flow meter | Variable-area, stainless steel, 20-250 litres/hour, 4-20 mA output |
| Vacuum | Vacuum circuit with trap; gauge 1 to 0 bar |
| Pipework and valves | Stainless steel |
| Control and data | Electrical control panel with PC interface; data acquisition software for Windows; emergency stop |
Experiments with the batch distillation pilot plant with data
Students charge the reboiler with a binary mixture, run the column at total and set reflux ratios, and log temperatures and flows to the PC to follow the separation over time.
- Batch distillation of binary mixtures at set reflux ratios
- Operation at total reflux and number of theoretical plates
- Vacuum distillation using the vacuum circuit
- Logging tray temperatures and cooling water flow to a PC
- Mass transfer operations practicals and projects
Scope of supply and ordering
This listing covers the batch distillation pilot plant with column, reboiler, condenser, heat exchangers, instruments, vacuum circuit, control panel, PC interface and software. The computer, cooling water connection and power supply rating are also confirmed on the quotation.
Frequently asked questions
How many trays does the column have?
Seven bubble cap trays in a 600 mm column.
Is data logging included?
Yes, a PC interface in the control panel and data acquisition software for Windows.
What reflux ratio control is provided?
Two programmable timers set the reflux ratio at the reflux head.
