Flow Through Helical Coil Manufacturer,Supplier and Exporter in India
Product Code : JA-CELE-9121

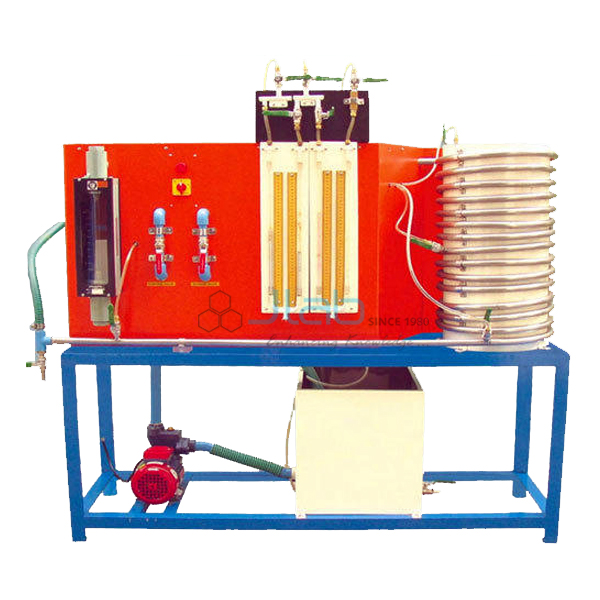

The Flow Through Helical Coil apparatus (SKU JA-CELE-9121) is a fluid mechanics set-up for studying pressure drop and friction in water flowing through a coiled tube. It has a 12 inch diameter stainless steel helical coil of 15 turns, a sump tank, a pump for water circulation, a rotameter and two manometers, all arranged on a painted structure with a control panel. JaincoLab manufactures this helical coil flow apparatus in India for chemical and mechanical engineering fluid flow laboratories.
Specifications
The coil is stainless steel, 12 inch in diameter with 15 turns of tube 21 mm OD and 17 mm ID (approx.); water is circulated from a 50 litre stainless steel/PVC sump tank by an FHP pump, with flow measured by rotameter and pressure drop by two manometers.
| Product | Flow Through Helical Coil |
| SKU | JA-CELE-9121 |
| Helical coil | Stainless steel, 12 inch diameter |
| Number of turns | 15 |
| Coil tube | OD 21 mm, ID 17 mm (approx.) |
| Sump tank | Stainless steel/PVC, 50 litres |
| Water circulation | FHP pump |
| Manometers | 2 |
| Flow measurement | Rotameter |
| Piping | GI and PVC |
| Control panel | On/off switch, mains indicator |
Experiments with the helical coil flow apparatus
Students set a flow rate on the rotameter, read the pressure drop across the coil on the manometers and calculate friction factors and Reynolds numbers for flow in the coil.
- Pressure drop across a helical coil at different flow rates
- Friction factor versus Reynolds number for coiled tube flow
- Comparing coil and straight-pipe friction losses
- Fluid flow operations practicals in chemical and mechanical engineering
Scope of supply and ordering
This listing covers the complete helical coil set-up with sump tank, pump, rotameter, two manometers, piping and control panel on the painted structure. Electrical supply details are also confirmed on the quotation.
Frequently asked questions
What are the coil dimensions?
A 12 inch diameter stainless steel coil of 15 turns, with tube 21 mm OD and 17 mm ID (approx.).
How are flow and pressure drop measured?
Flow with a rotameter and pressure drop with two manometers.
What is the sump tank capacity?
50 litres, in stainless steel/PVC.
