Manual Cooling Tower Manufacturer,Supplier and Exporter in India
Product Code : JA-CELE-9522

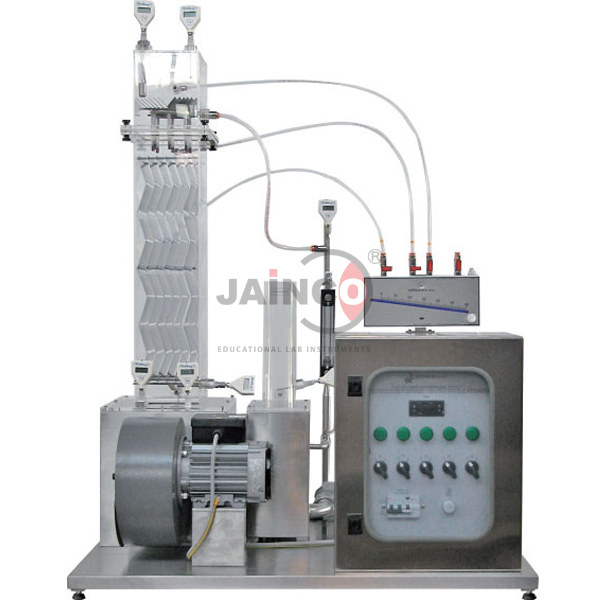

The Manual Cooling Tower (SKU JA-CELE-9522) is a bench cooling tower for studying evaporative cooling of water by an air stream. Hot water from a 9 litre stainless steel tank heated by three 500 W heaters is pumped to the top of a 550 mm clear acrylic tower and falls through one of three interchangeable packings while a centrifugal fan blows air upward. Six digital thermometers and a water flow meter record the run. This cooling tower demonstration unit is supplied by JaincoLab for chemical and mechanical engineering heat transfer laboratories.
Specifications
The unit has a rectangular 550 mm acrylic tower, three packings of 92, 131 and 235 m²/m³, a centrifugal fan of up to 1,340 m³/hour at 80 mm H2O, a water pump of up to 3 m³/hour at 5 m head, a 20-200 litres/hour flow meter and six digital thermometers.
| Product | Manual Cooling Tower |
| SKU | JA-CELE-9522 |
| Tower | Rectangular, clear acrylic, height 550 mm |
| Packings | 3 interchangeable - 92, 131 and 235 m²/m³ |
| Fan | Centrifugal, up to 1,340 m³/hour, head 80 mm H2O |
| Water pump | Up to 3 m³/hour, head 5 m H2O |
| Hot water tank | Stainless steel, 9 litres, 3 x 500 W electric heaters |
| Make-up tank | Acrylic, 1 litre |
| Flow meter | 20-200 litres/hour |
| Temperature | 6 digital thermometers with LCD displays |
| Controls | Electrical control panel in main cabinet; emergency stop |
Experiments with the cooling tower demonstration unit
Students set the water flow, heat load and fan speed, record inlet and outlet water and air temperatures and calculate the cooling range, approach and tower performance for each packing.
- Cooling range and approach to wet bulb temperature
- Effect of air and water flow rates on cooling
- Comparing packings of different specific surface
- Heat and mass balance over the tower
- Heat transfer and humidification practicals
Scope of supply and ordering
This listing covers the cooling tower unit with acrylic tower, three packings, fan, pump, heated water tank, make-up tank, flow meter, thermometers and control panel. Power supply details are confirmed on the quotation.
Frequently asked questions
Which packings are supplied?
Three interchangeable packings with specific surfaces of 92, 131 and 235 m²/m³.
How is the water heated?
In a 9 litre stainless steel tank with three 500 W electric heaters.
What is the fan capacity?
Up to 1,340 m³/hour at a head of 80 mm H2O.
