Thin Film Evaporation Plant Manufacturer,Supplier and Exporter in India
Product Code : JA-CELE-9521

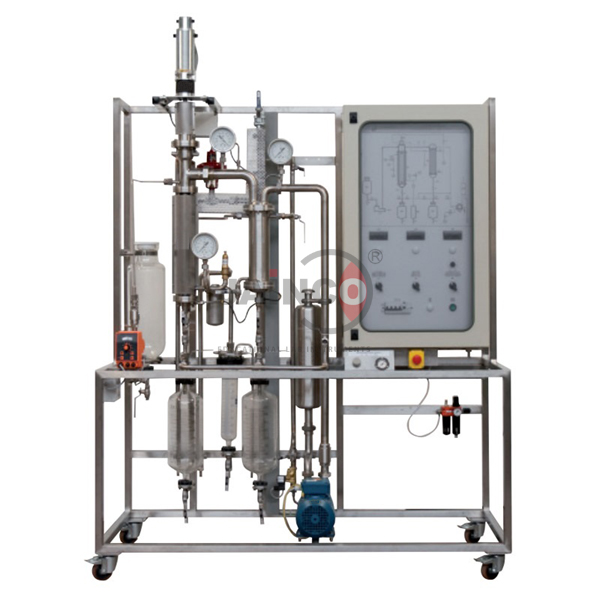

The Thin Film Evaporation Plant (SKU JA-CELE-9521) is a wiped thin film evaporator for concentrating heat-sensitive or viscous solutions under vacuum. The feed is spread as a thin film by a variable speed rotor over a 0.06 m² heated surface, and the vapour is condensed in a 0.26 m² shell-and-tube condenser, with a 0.7 kW liquid ring vacuum pump holding the vacuum. This thin film evaporation plant is supplied by JaincoLab for chemical, food and pharmaceutical engineering laboratories.
Specifications
The plant has a thin film evaporator with variable speed rotor and a water-cooled mechanical seal lubricated with silicone oil (0.06 m²), a 0.26 m² condenser, a steam valve of Cv 0.32, a metering pump of up to 8 litres/hour, a 5 litre feed tank and 4 litre product and solvent tanks.
| Product | Thin Film Evaporation Plant |
| SKU | JA-CELE-9521 |
| Evaporator | Thin film, variable speed rotor, 0.06 m² exchange surface; water-cooled mechanical seal lubricated with silicone oil |
| Rotor speed | Electronic rpm indicator |
| Condenser | Shell-and-tube, 0.26 m² exchange surface |
| Steam | Pneumatic control valve Cv 0.32; steam trap |
| Feed | 5 litre tank; metering pump up to 8 litres/hour |
| Tanks | Concentrated product 4 litres; condensed solvent 4 litres; graduated condensate 1 litre |
| Vacuum | Liquid ring vacuum pump 0.7 kW with air/water separator and solenoid valve; vacuum gauge -1 to 0 |
| Temperature | 3 thermocouples with Pt100 probes, 3 electronic indicators |
Experiments with the thin film evaporation plant
Students evaporate a solution at different rotor speeds, feed rates and vacuum levels and measure the concentrate and condensate to find the evaporation rate and heat transfer performance.
- Concentration of heat-sensitive solutions under vacuum
- Effect of rotor speed on film evaporation
- Evaporation rate and heat transfer coefficient
- Solvent recovery from viscous mixtures
- Evaporation practicals in chemical and food engineering
Scope of supply and ordering
This listing covers the thin film evaporation plant with evaporator and rotor drive, condenser, pump, tanks, vacuum pump, steam control and instruments. A steam source, cooling water and power supply are required and are confirmed on the quotation.
Frequently asked questions
What is the evaporator surface area?
0.06 m², wiped by a variable speed rotor.
Can it run under vacuum?
Yes, a 0.7 kW liquid ring vacuum pump is included.
What is the feed rate?
Up to 8 litres per hour from the metering pump.
Related products
- Single Effect Falling Film Evaporation Pilot Plant
- Double Effect Falling Film Evaporation Plant
- Spray Dryer Process Unit
- Manual Tray Dryer Process Unit
Browse the JaincoLab training workshop labs range for other chemical engineering, process and training units.
Request a quote
For a quotation on the Thin Film Evaporation Plant, share the quantity, any size or specification preference and the destination via the JaincoLab contact page; the sales team also answers at [email protected]. Tender and project enquiries can be sent through the tenders page.
