Double Effect Falling Film Evaporation Plant Manufacturer,Supplier and Exporter in India
Product Code : JA-CELE-9520

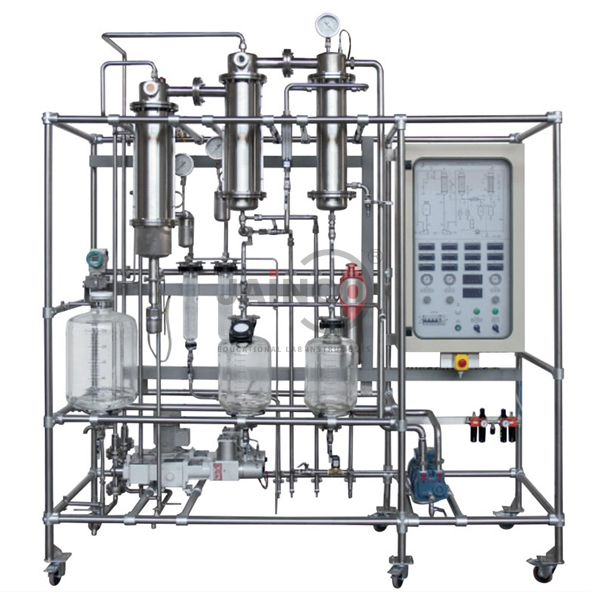

The Double Effect Falling Film Evaporation Plant (SKU JA-CELE-9520) is a two-stage evaporator in which vapour from the first effect heats the second, showing how multiple-effect operation saves steam. It is listed with a 25 litre feed tank, a metering pump of 0-32 litres/hour with pneumatic actuator, twelve Pt100 temperature points, steam flow measurement by calibrated diaphragm and a 0.7 kW liquid ring vacuum pump. This double effect evaporation plant is supplied by JaincoLab for chemical engineering laboratories.
Specifications
The plant has two falling film effects with two steam traps and two graduated 1 litre condensate tanks, a 0.7 kW liquid ring vacuum pump with air/water separator, a 25-250 litres/hour flow meter, Bourdon gauges of 0-6 bar and 0-1.6 bar, a vacuum gauge and stainless steel pipework; evaporator surface areas are confirmed on the quotation.
| Product | Double Effect Falling Film Evaporation Plant |
| SKU | JA-CELE-9520 |
| Configuration | Double effect falling film evaporation |
| Feed | 25 litre tank; metering pump 0-32 litres/hour with pneumatic actuator |
| Tanks | Concentrated product 10 litres; condensed solvent 10 litres; 2 graduated condensate tanks of 1 litre |
| Steam | 2 steam traps; calibrated diaphragm with differential pressure transmitter |
| Vacuum | Liquid ring vacuum pump 0.7 kW with air/water separator and solenoid valve; vacuum gauge 1 to 0 |
| Pressure | Bourdon gauges 0-6 bar and 0-1.6 bar |
| Flow meter | 25-250 litres/hour |
| Temperature | 12 thermocouples with Pt100 probes, 12 electronic indicators |
| Pipework and controls | Stainless steel pipework; electrical control panel; emergency stop |
Experiments with the double effect evaporation plant
Students run both effects under vacuum, measure condensate from each and compare the steam economy of double effect operation with a single effect.
- Double effect evaporation of solutions
- Steam economy of multiple-effect evaporators
- Heat transfer coefficients in each effect
- Operation under vacuum with the liquid ring pump
- Evaporation and heat transfer practicals
Scope of supply and ordering
This listing covers the double effect evaporation plant with both effects, pumps, tanks, vacuum pump, steam traps and instruments. A steam source, cooling water and power supply are required and are confirmed on the quotation.
Single units for one laboratory and complete sets for institutions or projects are both supplied.
Frequently asked questions
Why use a double effect evaporator?
Vapour from the first effect heats the second, so less steam is needed per kilogram of water evaporated.
How is vacuum produced?
By a 0.7 kW liquid ring vacuum pump with air/water separator.
How many temperature points are there?
Twelve thermocouples with Pt100 probes and twelve indicators.
Related products
- Single Effect Falling Film Evaporation Pilot Plant
- Thin Film Evaporation Plant
- Spray Dryer Process Unit
- Manual Tray Dryer Process Unit
See the complete training workshop labs range for related chemical engineering and training laboratory equipment.
Request a quote
Request pricing for the Double Effect Falling Film Evaporation Plant (SKU JA-CELE-9520) through the JaincoLab contact page, stating the quantity and where it is to be delivered, or write to [email protected]. For tender or project supply, see our tenders page.
