Manual Tray Dryer Process Unit Manufacturer,Supplier and Exporter in India
Product Code : JA-CELE-9523

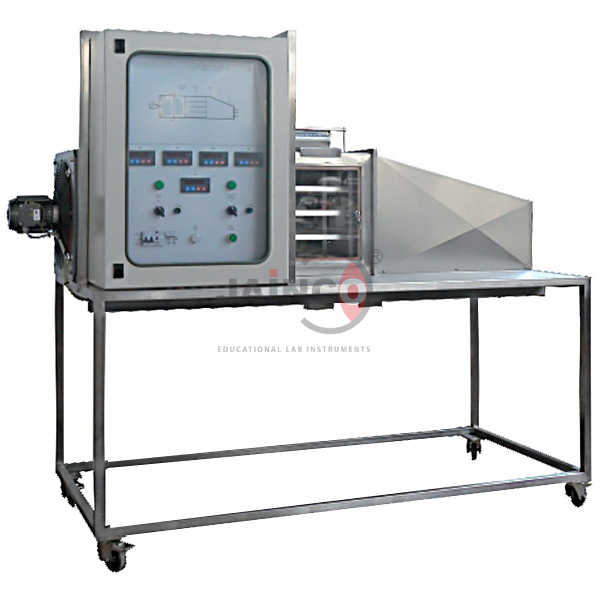

The Manual Tray Dryer Process Unit (SKU JA-CELE-9523) is a convective tray dryer for studying the drying of wet solids in a heated air stream. Air from an axial fan with digital speed control of 0 to 4 m/s passes a 2,700 W heating element array and flows along a horizontal duct with a 450 x 450 mm window over four 400 x 300 mm aluminium trays. Loss of weight is followed on a 0-10 kg electronic balance. This tray dryer unit is supplied by JaincoLab for chemical engineering laboratories.
Specifications
The unit has four aluminium trays of 400 x 300 mm, a horizontal air duct with 450 x 450 mm window, an axial fan of 0-4 m/s, a 2,700 W heater array, two digital thermohygrometers, a digital anemometer, a 0-10 kg balance with 0.1 g resolution and a digital chronometer.
| Product | Manual Tray Dryer Process Unit |
| SKU | JA-CELE-9523 |
| Trays | 4, aluminium, 400 x 300 mm |
| Air duct | Horizontal, with 450 x 450 mm window |
| Fan | Axial, digital speed control, 0-4 m/s |
| Heating | Electrical heating element array, 2,700 W |
| Humidity and temperature | 2 digital thermohygrometers |
| Air velocity | Digital anemometer |
| Weighing | Electronic balance 0-10 kg, 0.1 g resolution |
| Timing | Digital chronometer |
| Controls | Electrical control panel in main cabinet; emergency stop |
Experiments with the tray dryer unit
Students load wet material on the trays, set air velocity and temperature, and record weight against time to plot drying rate curves with constant-rate and falling-rate periods.
- Drying rate curves for wet solids
- Constant-rate and falling-rate drying periods
- Effect of air velocity and temperature on drying
- Psychrometry of the drying air with thermohygrometers
- Mass transfer and drying practicals
Scope of supply and ordering
This listing covers the tray dryer unit with trays, duct, fan, heater array, thermohygrometers, anemometer, balance, chronometer and control panel. Power supply details are confirmed on the quotation.
The Manual Tray Dryer Process Unit can be ordered for a single laboratory or as part of a complete laboratory package for a college or training programme.
Frequently asked questions
How many trays are there?
Four aluminium trays of 400 x 300 mm.
What air velocity and heating are available?
An axial fan of 0 to 4 m/s with digital speed control and a 2,700 W heating element array.
How is the drying followed?
By weighing on a 0-10 kg electronic balance with 0.1 g resolution against a digital chronometer.
Related products
- Spray Dryer Process Unit
- Manual Cooling Tower
- Thin Film Evaporation Plant
- Fluidisation and Fluid Bed Heat Transfer Unit
For a complete laboratory, see the training workshop labs range, which covers chemical engineering, data acquisition and applied machines equipment.
Request a quote
To get a quotation for the Manual Tray Dryer Process Unit, send SKU JA-CELE-9523, the quantity and the delivery destination through the JaincoLab contact page or email [email protected]. Institutions and contractors buying under a tender can also reach us via the tenders page.
