Spray Dryer Process Unit Manufacturer,Supplier and Exporter in India
Product Code : JA-CELE-9524

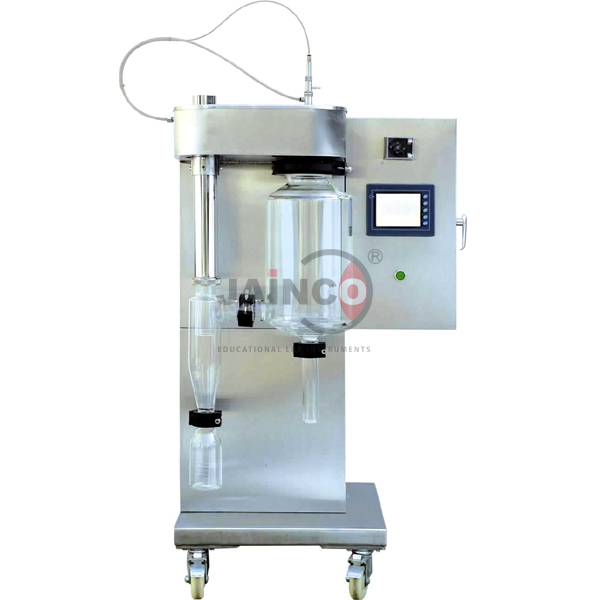

The Spray Dryer Process Unit (SKU JA-CELE-9524) is a laboratory spray dryer that turns a liquid feed into dry powder. A peristaltic pump adjustable up to 1,500 ml per hour feeds a spray nozzle atomised by a built-in compressor into a heated drying chamber, and a cyclone collects the dried product in a bottle. A 3,000 W heating system, variable speed fan and touch screen control panel set the conditions. This spray dryer unit is supplied by JaincoLab for chemical, food and pharmaceutical engineering laboratories.
Specifications
The unit has a spray nozzle atomisation system with cleaning device, a drying chamber with residue vessel, a cyclone with collection bottle, a 3,000 W heater, a variable speed fan, a built-in compressor, a peristaltic pump up to 1,500 ml/hour and an exhaust pipe for solvent vapour, on 230 V AC, 50 Hz, single phase at 3000 VA.
| Product | Spray Dryer Process Unit |
| SKU | JA-CELE-9524 |
| Atomisation | Spray nozzle with cleaning device; built-in compressor |
| Drying chamber | With collection vessel for residue |
| Product collection | Cyclone with bottle |
| Heating | 3,000 W, programmable temperature (maximum confirmed on the quotation) |
| Feed pump | Peristaltic, adjustable up to 1,500 ml/hour |
| Air | Variable speed fan; exhaust pipe for solvent vapour |
| Control | Touch screen control panel |
| Power supply | 230 V AC, 50 Hz, single phase, 3000 VA |
Applications of the laboratory spray dryer
Students spray-dry solutions and suspensions at chosen inlet temperatures and feed rates, then compare powder yield and moisture to understand spray drying of foods, pharmaceuticals and chemicals.
- Spray drying of milk, juice and food solutions
- Drying of pharmaceutical and chemical solutions to powder
- Effect of inlet temperature and feed rate on yield
- Particle collection in a cyclone
- Drying practicals in chemical, food and pharmacy courses
Scope of supply and ordering
This listing covers the spray dryer unit with atomiser, chamber, cyclone and bottle, heater, fan, compressor, peristaltic pump and touch screen control. Spare nozzles and glassware are confirmed on the quotation.
Single units for one laboratory and complete sets for institutions or projects are both supplied.
Frequently asked questions
What is the feed rate range?
The peristaltic pump is adjustable up to 1,500 ml per hour.
How is the product collected?
A cyclone separates the dried powder into a collection bottle.
What is the maximum drying temperature?
The temperature is programmable; the listed figure reads 2500C, so the maximum is confirmed on the quotation.
