Single Effect Falling Film Evaporation Pilot Plant Manufacturer,Supplier and Exporter in India
Product Code : JA-CELE-9519

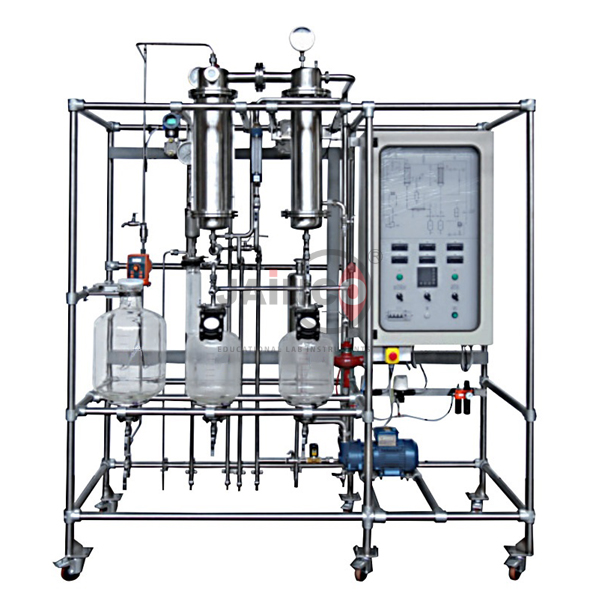

The Single Effect Falling Film Evaporation Pilot Plant (SKU JA-CELE-9519) is a steam-heated evaporator for concentrating solutions, as used in food, dairy and chemical processing. The feed runs as a thin film down the tubes of a falling film shell-and-tube evaporator with 0.27 m² exchange surface, the vapour is condensed in a 1.1 m² shell-and-tube condenser, and steam flow is measured with a calibrated diaphragm and set by a pneumatic valve. This falling film evaporation plant is supplied by JaincoLab for chemical engineering laboratories.
Specifications
The plant has a 0.27 m² falling film evaporator, a 1.1 m² condenser, a tube-in-tube heat exchanger, metering pumps of 0-24 and 0-8.5 litres/hour, a 25 litre feed tank, 10 litre product and solvent tanks, a 1 litre graduated condensate tank and six Pt100 temperature points.
| Product | Single Effect Falling Film Evaporation Pilot Plant |
| SKU | JA-CELE-9519 |
| Evaporator | Falling film, shell-and-tube, 0.27 m² exchange surface |
| Condenser | Shell-and-tube, 1.1 m² exchange surface |
| Other heat exchanger | Tube-in-tube |
| Pumps | Metering pumps 0-24 litres/hour and 0-8.5 litres/hour |
| Tanks | Feed 25 litres; concentrated product 10 litres; condensed solvent 10 litres; graduated condensate 1 litre |
| Steam | Pneumatic control valve Cv 0.32; calibrated diaphragm with differential pressure transmitter; steam trap |
| Pressure | Bourdon gauges 0-6 bar and 0-1.6 bar; vacuum gauge -1 to 0 bar |
| Temperature | 6 thermocouples with Pt100 probes, 6 electronic indicators |
Experiments with the falling film evaporation plant
Students concentrate a feed solution at set feed and steam rates, measure condensate and product, and calculate heat transfer coefficients, steam economy and evaporation capacity.
- Concentration of solutions in a falling film evaporator
- Overall heat transfer coefficient of the evaporator
- Steam economy and evaporator capacity
- Effect of feed rate and steam flow on concentration
- Heat transfer and evaporation practicals
Scope of supply and ordering
This listing covers the single effect falling film evaporation plant with evaporator, condenser, heat exchanger, pumps, tanks, steam control and instruments. A steam source, cooling water and power supply are required and are confirmed on the quotation.
The Single Effect Falling Film Evaporation Pilot Plant can be ordered for a single laboratory or as part of a complete laboratory package for a college or training programme.
Frequently asked questions
What is the evaporator surface area?
0.27 m², in a falling film shell-and-tube evaporator.
How is the steam controlled and measured?
By a pneumatic valve (Cv 0.32) and a calibrated diaphragm with differential pressure transmitter.
Does the plant include a steam generator?
A steam source is not listed; it is confirmed on the quotation.
Related products
- Double Effect Falling Film Evaporation Plant
- Thin Film Evaporation Plant
- Spray Dryer Process Unit
- Manual Cooling Tower
For a complete laboratory, see the training workshop labs range, which covers chemical engineering, data acquisition and applied machines equipment.
Request a quote
To get a quotation for the Single Effect Falling Film Evaporation Pilot Plant, send SKU JA-CELE-9519, the quantity and the delivery destination through the JaincoLab contact page or email [email protected]. Institutions and contractors buying under a tender can also reach us via the tenders page.
