Automated Solid Liquid Extraction Pilot Plant Manufacturer,Supplier and Exporter in India
Product Code : JA-CELE-9508

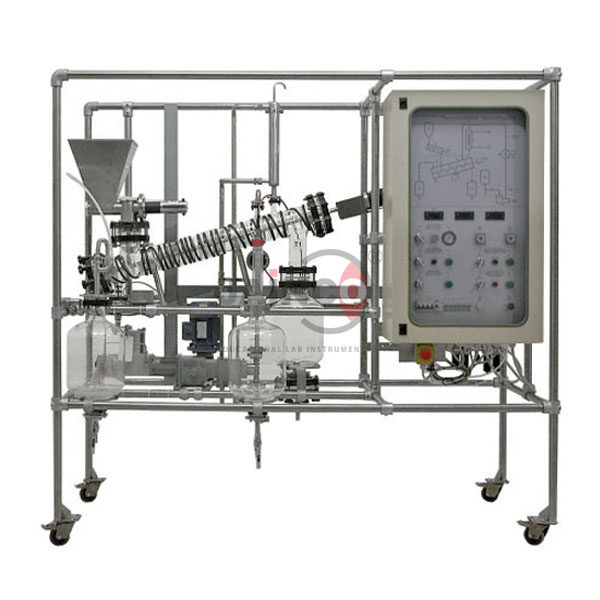

The Automated Solid Liquid Extraction Pilot Plant (SKU JA-CELE-9508) is a continuous screw extractor with PID control for leaching studies. Solids from a 2 litre hopper are carried through a 1,000 mm extraction column by a PTFE Archimedean screw against the solvent, and a microprocessor digital PID controller with serial card drives three automated pneumatic control devices. Extract and spent solids are collected in 10 litre tanks. This automated solid-liquid extraction plant is supplied by JaincoLab for chemical engineering and process control laboratories.
Specifications
The plant has a 1,000 mm extraction column with PTFE Archimedean screw, feed and transport screws at 0-20 rpm and 0-10 rpm, a thyristor-controlled heating unit, three Pt100 temperature points and a microprocessor PID controller with serial card.
| Product | Automated Solid Liquid Extraction Pilot Plant |
| SKU | JA-CELE-9508 |
| Extraction column | 1,000 mm, PTFE Archimedean screw |
| Solids hopper | 2 litres |
| Feeding screw drive | Geared motor, 0-20 rpm; 2 programmable timers for start and stop |
| Transporting screw drive | Geared motor, 0-10 rpm |
| Tanks | Solvent 10 litres; extracted product 10 litres; waste solids 10 litres |
| Heating | Thyristor-controlled electric heating unit |
| Temperature | 3 thermocouples with Pt100 probes in stainless steel sleeves, 3 electronic indicators |
| Control | Microprocessor digital PID controller with serial card |
| Pneumatic control | 3 automated pneumatic control devices |
| Controls | Electrical control panel in main cabinet; emergency stop |
Experiments with the automated solid-liquid extraction plant
Students run the extractor under PID control of temperature and flow, then vary screw speeds and set points to see their effect on solute recovery.
- Continuous solid-liquid extraction under automatic control
- PID tuning of extraction temperature and flow
- Effect of solids residence time via screw speed
- Mass balance over solids, solvent and extract
- Combined mass transfer and process control practicals
Scope of supply and ordering
This listing covers the automated solid-liquid extraction plant with extraction column, hopper, screws and drives, tanks, heating unit, instruments, PID controller and pneumatic devices. Solvent metering arrangement, compressed air and power supply are also confirmed on the quotation.
Single units for one laboratory and complete sets for institutions or projects are both supplied.
Frequently asked questions
How is the plant controlled?
By a microprocessor digital PID controller with serial card and three automated pneumatic control devices.
What is the extraction column?
A 1,000 mm column with a PTFE Archimedean screw.
What tank sizes are provided?
10 litre tanks for solvent, extracted product and waste solids, and a 2 litre solids hopper.
