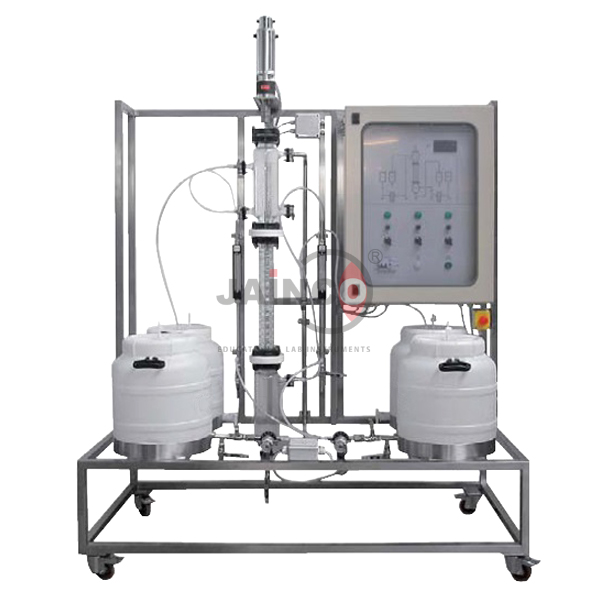

Liquid-Liquid Extraction Pilot Plant With Raschig Ring Packing Manufacturer,Supplier and Exporter in India
Product Code : JA-CELE-9505
The Liquid-Liquid Extraction Pilot Plant With Raschig Ring Packing (SKU JA-CELE-9505) is a packed-column extraction plant for studying counter-current liquid-liquid extraction. A 600 mm extraction column packed with Raschig rings sits between top and bottom separators, and two metering pumps of 0 to 40 litres per hour feed the light and heavy phases from 30 litre tanks. Extract and refined product are collected in two further 30 litre tanks. This packed extraction column plant is supplied by JaincoLab for chemical engineering laboratories.
Specifications
The plant has a 600 mm packed extraction column with Raschig rings, top and bottom separators, two metering pumps of 0-40 litres/hour, four 30 litre tanks (heavy phase, light phase, extract and refined product) and an electrical control panel in the main cabinet.
| Product | Liquid-Liquid Extraction Pilot Plant With Raschig Ring Packing |
| SKU | JA-CELE-9505 |
| Extraction column | 600 mm, packed with Raschig rings |
| Separators | Top and bottom |
| Metering pumps | 2, 0-40 litres/hour |
| Feed tanks | Heavy phase 30 litres; light phase 30 litres |
| Collecting tanks | Extract 30 litres; refined product 30 litres |
| Indicator | Electronic indicator for agitator speed (as listed) |
| Controls | Electrical control panel in main cabinet; emergency stop |
Experiments with the Raschig ring extraction column
Students feed the two phases counter-currently through the packing at set flow rates, collect extract and raffinate, and calculate the solute transferred and the column performance.
- Counter-current extraction in a packed column
- Effect of phase flow rates on extraction
- Height of a transfer unit and stage calculations
- Comparing packed and agitated extraction columns
- Mass transfer operations practicals
Scope of supply and ordering
This listing covers the packed extraction plant with column, separators, metering pumps, four tanks and control panel. Column material and dimensions other than height, solvents and power supply are confirmed on the quotation.
Frequently asked questions
What packing does the column use?
Raschig rings, in a 600 mm extraction column.
What tank capacities are provided?
Four 30 litre tanks for the heavy phase, light phase, extract and refined product.
How are the phases fed?
By two metering pumps with a flow rate of 0 to 40 litres per hour.
