Continuous Distillation Pilot Plant Manufacturer,Supplier and Exporter in India
Product Code : JA-CELE-9501

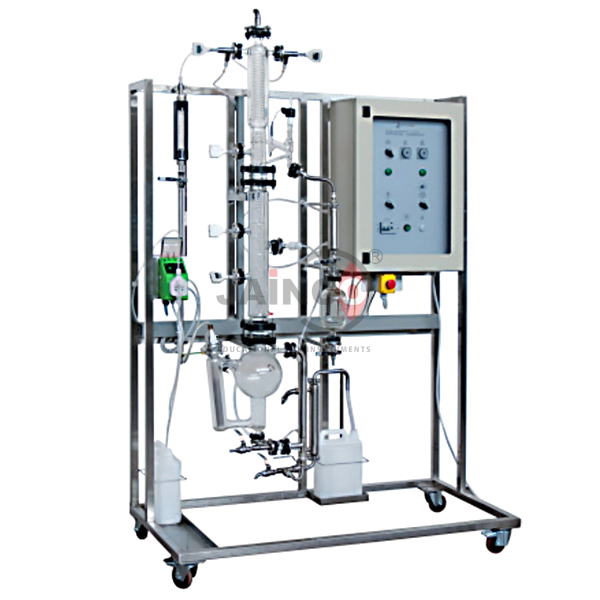

The Continuous Distillation Pilot Plant (SKU JA-CELE-9501) is a sieve-tray continuous distillation unit that feeds a mixture steadily into the column and draws off distillate and bottoms product. A metering pump delivers 0 to 8.5 litres/hour from a 5 litre feed tank into a 600 mm column with 7 sieve trays above a 3 litre reboiler with a 1600 W heater. Six Pt100 digital thermometers follow the column profile. This continuous distillation plant is supplied by JaincoLab for chemical engineering mass transfer laboratories.
Specifications
The plant has a 600 mm column with 7 sieve trays, a 3 litre reboiler with 1600 W heater and thyristor control, a condenser with reflux head and two reflux timers, three tube-in-tube heat exchangers, a 5 litre feed tank, a 1 litre distillate tank and a 5 litre bottoms tank.
| Product | Continuous Distillation Pilot Plant |
| SKU | JA-CELE-9501 |
| Column | Height 600 mm, 7 sieve trays |
| Reboiler | 3 litres, 1600 W electric heater, thyristor power control |
| Feed | 5 litre feed tank; metering pump 0-8.5 litres/hour |
| Product tanks | Distillate 1 litre; bottoms 5 litres |
| Condenser | With reflux head; 2 programmable timers for reflux ratio |
| Heat exchangers | 3 tube-in-tube |
| Temperature | 6 digital thermometers with Pt100 probes in stainless steel sleeves |
| Flow meter | Variable-area, 20-200 litres/hour |
| Pipework and controls | Stainless steel pipework; electrical control panel; emergency stop |
Experiments with the continuous distillation pilot plant
Students set the feed rate and reflux ratio, bring the column to steady state and sample distillate and bottoms to calculate the separation achieved.
- Continuous distillation of a binary mixture at steady state
- Effect of feed rate and reflux ratio on product composition
- Material balance over feed, distillate and bottoms
- Temperature profile along a sieve tray column
- Mass transfer operations practicals
Scope of supply and ordering
This listing covers the continuous distillation pilot plant with column, reboiler, condenser, metering pump, tanks, heat exchangers and instruments. Cooling water connection and power supply are also confirmed on the quotation.
Frequently asked questions
How is the feed supplied?
A metering pump delivers 0 to 8.5 litres/hour from a 5 litre feed tank.
What are the product tank sizes?
A 1 litre distillate tank and a 5 litre bottoms tank.
Which trays does the column use?
Seven sieve trays in a 600 mm column.
