Reverse Osmosis and Ultra Filtration Pilot Plant Manufacturer,Supplier and Exporter in India
Product Code : JA-CELE-9517

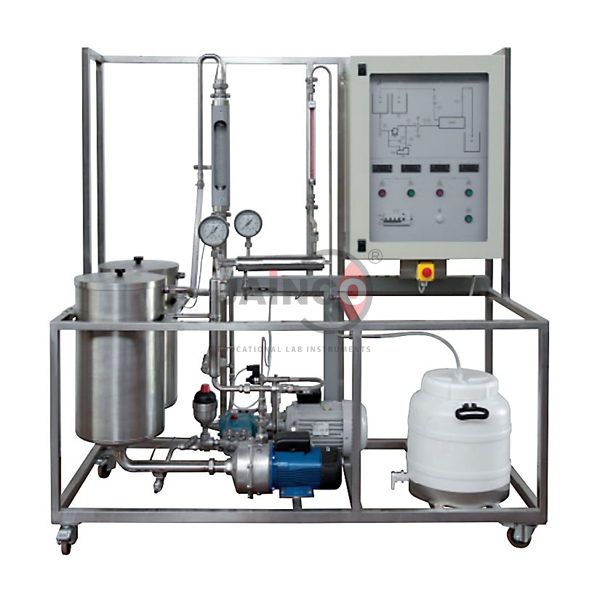

The Reverse Osmosis and Ultra Filtration Pilot Plant (SKU JA-CELE-9517) is a membrane separation pilot plant for reverse osmosis and ultrafiltration studies. A piston pump drives feed from a 30 litre tank across two membranes with a typical permeate flow of 5 to 50 millilitres per minute, and permeate and concentrate flows are read on two variable area flow meters. Bourdon gauges, Pt100 sensors, a heat exchanger and a safety valve complete the circuit. This RO and ultrafiltration pilot plant is supplied by JaincoLab for chemical and environmental engineering laboratories.
Specifications
The plant has a 30 litre feed tank, a 30 litre permeate tank, a piston pump, two membranes (5-50 ml/min typical permeate), a heat exchanger, two Bourdon gauges, two variable area flow meters, four Pt100 thermocouples, safety pressure switches and a safety valve, on 400 V AC, 50 Hz, three phase at 3000 VA.
| Product | Reverse Osmosis and Ultra Filtration Pilot Plant |
| SKU | JA-CELE-9517 |
| Membranes | 2, typical permeate flow 5-50 ml/min |
| Pump | Piston pump |
| Tanks | Feed 30 litres; permeate 30 litres |
| Flow measurement | 2 variable area flow meters (permeate and concentrate) |
| Pressure | 2 Bourdon gauges; safety pressure switches; safety valve |
| Temperature | 4 thermocouples with Pt100 probes in stainless steel sleeves; heat exchanger |
| Controls | Electrical control unit; emergency stop |
| Power supply | 400 V AC, 50 Hz, three phase, 3000 VA |
Experiments with the RO and ultrafiltration pilot plant
Students pressurise the feed across each membrane, measure permeate and concentrate flows and pressures, and calculate flux and rejection at different operating conditions.
- Reverse osmosis desalting and concentration
- Ultrafiltration of macromolecular solutions
- Permeate flux versus transmembrane pressure
- Salt or solute rejection measurements
- Membrane process practicals in chemical and environmental engineering
Scope of supply and ordering
This listing covers the RO and ultrafiltration pilot plant with pump, membranes, tanks, heat exchanger, gauges, flow meters, temperature sensors and control unit. Membrane types, operating pressure limit and cooling water are confirmed on the quotation.
Frequently asked questions
What is the typical permeate flow?
5 to 50 millilitres per minute per membrane.
How is the feed pressurised?
With a piston pump, monitored by Bourdon gauges and protected by safety pressure switches and a safety valve.
What power supply does it need?
400 V AC, 50 Hz, three phase, 3000 VA.
