Filter Press and Micro Filter Pilot Plant Manufacturer,Supplier and Exporter in India
Product Code : JA-CELE-9516

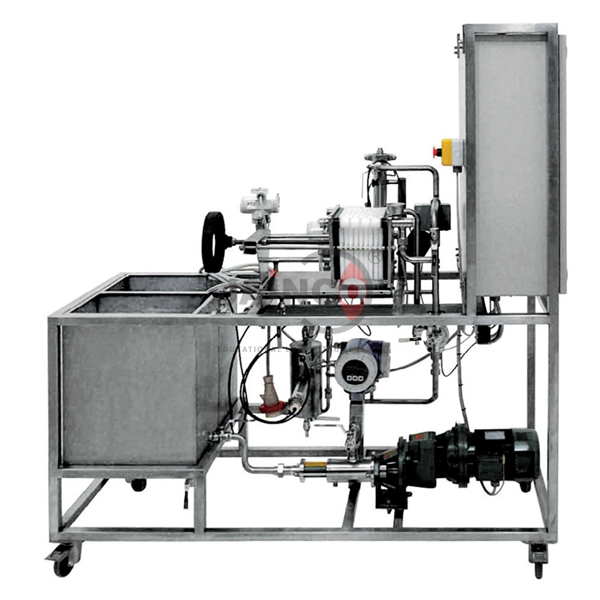

The Filter Press and Micro Filter Pilot Plant (SKU JA-CELE-9516) is a solid-liquid separation plant that combines a plate-and-frame filter press with a cartridge microfilter. A screw pump with inverter control feeds slurry from a 100 litre stirred tank through the filter press with transparent acrylic frames, and the filtrate passes the microfilter to a 100 litre tank. A magnetic flow meter, a turbidimeter and a PID controller with Windows supervision software monitor the run. It is supplied by JaincoLab for chemical and environmental engineering laboratories.
Specifications
The plant has a feed screw pump with inverter, a filter press with acrylic frames, a microfilter with housing, 100 litre feed and filtrate tanks, a 4-20 mA magnetic induction flow meter and turbidimeter, two safety pressure switches and a PID controller, on 400 V AC, 50 Hz, three phase at 1500 VA.
| Product | Filter Press and Micro Filter Pilot Plant |
| SKU | JA-CELE-9516 |
| Filter press | Plate-and-frame with clear acrylic frames |
| Microfilter | With housing |
| Feed pump | Screw pump with electronic inverter control |
| Tanks | Feed 100 litres with stirrer and submersible pump; filtrate 100 litres |
| Instruments | Magnetic induction flow meter 4-20 mA; electronic turbidimeter 4-20 mA; 2 safety pressure switches |
| Control | Digital microprocessor PID controller; supervision software for Windows with real-time and historical trends |
| Power supply | 400 V AC, 50 Hz, three phase, 1500 VA |
Experiments with the filter press and microfilter plant
Students filter a prepared slurry at controlled flow, record filtrate volume against time to find cake and medium resistance, and check filtrate clarity on the turbidimeter.
- Constant-rate and constant-pressure filtration
- Specific cake resistance and filter medium resistance
- Microfiltration of the filtrate and turbidity reduction
- Flow control with inverter pump and PID controller
- Solid-liquid separation practicals in chemical and environmental engineering
Scope of supply and ordering
This listing covers the filter press and microfilter pilot plant with pump, tanks, filter press, microfilter, instruments, PID controller and supervision software. The computer, filter cloths and cartridges are confirmed on the quotation.
Single units for one laboratory and complete sets for institutions or projects are both supplied.
Frequently asked questions
What filtration stages are included?
A plate-and-frame filter press with acrylic frames followed by a microfilter in a housing.
How is the slurry fed?
By a screw pump with electronic inverter control from a 100 litre stirred tank.
What power supply is needed?
400 V AC, 50 Hz, three phase, 1500 VA.
