Reverse Osmosis Ultra filtration Unit Manufacturer,Supplier and Exporter in India
Product Code : JA-CELE-9119

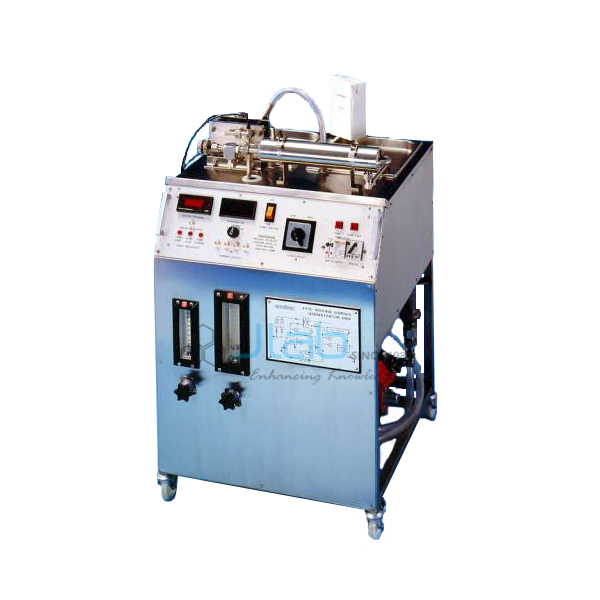

The Reverse Osmosis Ultra filtration Unit (SKU JA-CELE-9119) is a self-contained RO/UF membrane pilot unit in a mobile cabinet for membrane separation studies and scale-up trials. The cabinet houses the membrane module, feed and permeate tanks, a plate heat exchanger and positive displacement pumps, with digital meters for temperatures and system pressure. Packs of both RO and UF membranes are supplied and can be changed quickly. This RO and UF membrane unit is supplied by JaincoLab for chemical, food and environmental engineering laboratories.
Specifications
The unit operates at flow rates of 30, 18, 15 and 9 l/min and pressures variable up to 55 bar, with a membrane tube diameter of 1.25 cm, membrane area of 0.024 m², tubeside volume of 75 ml, typical permeate flow of 5-50 ml/min and 15 litre feed and permeate tanks.
| Product | Reverse Osmosis Ultra filtration Unit |
| SKU | JA-CELE-9119 |
| Processes | Reverse osmosis (RO) and ultrafiltration (UF); packs of both membranes supplied |
| Flow rates | 30, 18, 15 and 9 l/min |
| Pressure | Variable up to 55 bar |
| Membrane tube diameter | 1.25 cm |
| Membrane area | 0.024 m² |
| Tubeside volume | 75 ml |
| Typical permeate flow | 5-50 ml/min |
| Feed / permeate tanks | 15 litres / 15 litres |
| Wetted materials | Stainless steel, PTFE, silicone rubber |
| Services | Cooling water and electrical supply; clean-in-place facility |
Applications of the RO and UF membrane unit
Using small quantities of process fluid, students and researchers establish and optimise membrane operating parameters such as pressure and flow before a process is scaled up.
- Reverse osmosis concentration and desalting studies
- Ultrafiltration of proteins, juices and effluents
- Effect of pressure and flow rate on permeate flux
- Clean-in-place and membrane fouling studies
- Scale-up trials, since the membranes differ from plant membranes only in length and number
Scope of supply and ordering
This listing covers the RO/UF unit in its mobile cabinet with membrane module, tanks, heat exchanger, pumps, digital meters and packs of RO and UF membranes. Electrical supply rating and spare membranes are also confirmed on the quotation.
The Reverse Osmosis Ultra filtration Unit can be ordered for a single laboratory or as part of a complete laboratory package for a college or training programme.
Frequently asked questions
Which membrane processes can be run?
Reverse osmosis and ultrafiltration; packs of both membrane types are supplied.
What operating pressure is available?
Pressure is variable up to 55 bar.
What services are needed?
A cooling water connection and a suitable electrical supply.
Related products
- Anaerobic Digester
- Aerobic Digester
- Absorption in Packed Column
- Fluidisation and Fluid Bed Heat Transfer Unit
For a complete laboratory, see the training workshop labs range, which covers chemical engineering, data acquisition and applied machines equipment.
Request a quote
To get a quotation for the Reverse Osmosis Ultra filtration Unit, send SKU JA-CELE-9119, the quantity and the delivery destination through the JaincoLab contact page or email [email protected]. Institutions and contractors buying under a tender can also reach us via the tenders page.
