Bio diesel Production Pilot Plant Manufacturer,Supplier and Exporter in India
Product Code : JA-CELE-9514

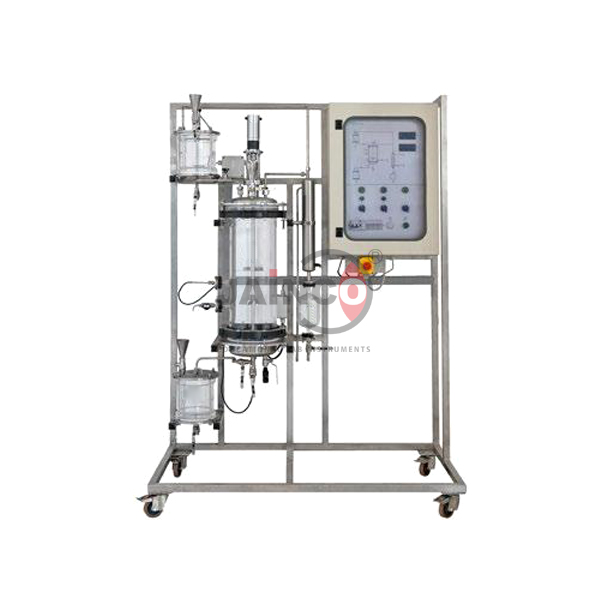

The Bio diesel Production Pilot Plant (SKU JA-CELE-9514) is a bench pilot plant for producing biodiesel from vegetable oils by reaction with an alcohol and catalyst. It is listed with a stirred tank for the reagent and catalyst, an 18 litre multifunction reactor vessel with motorised stirrer and condenser, an electric heating system with thermostat and two further tanks, with an electrical control panel, on 230 V AC, 50 Hz, single phase at 1500 VA. This biodiesel production plant is supplied by JaincoLab for chemical and renewable energy engineering laboratories.
Specifications
The plant consists of a reagent and catalyst tank with stirrer, an 18 litre multifunction reactor with motorised stirrer and condenser, an electric heating system with thermostat, two tanks listed as restoring tanks and a control panel; materials and dimensions are confirmed on the quotation.
| Product | Bio diesel Production Pilot Plant |
| SKU | JA-CELE-9514 |
| Reactor | Multifunction vessel, 18 litres, motorised stirrer and condenser |
| Reagent tank | For reagent and catalyst, with stirrer |
| Other tanks | 2 (listed as restoring tanks) |
| Heating | Electrical heating system with thermostat |
| Controls | Electrical control panel in main cabinet |
| Power supply | 230 V AC, 50 Hz, single phase, 1500 VA |
Applications of the biodiesel production pilot plant
Students mix oil with the alcohol and catalyst in the heated, stirred reactor, then separate and wash the product to follow the biodiesel process from feedstock to fuel.
- Transesterification of vegetable oils to biodiesel
- Effect of temperature, catalyst and mixing on yield
- Separation of biodiesel and glycerol phases
- Renewable energy and bio-fuel process demonstrations
- Chemical engineering projects on alternative fuels
Scope of supply and ordering
This listing covers the biodiesel production pilot plant with reactor, reagent and catalyst tank, two further tanks, heating system and control panel. Feedstock, chemicals and analytical equipment are not part of the listing.
Frequently asked questions
What is the reactor capacity?
18 litres, with a motorised stirrer and condenser.
How is the reaction heated?
By an electrical heating system with thermostat.
What power supply is required?
230 V AC, 50 Hz, single phase, 1500 VA.
