Manual Solid Liquid Extraction Pilot Plant Manufacturer,Supplier and Exporter in India
Product Code : JA-CELE-9507

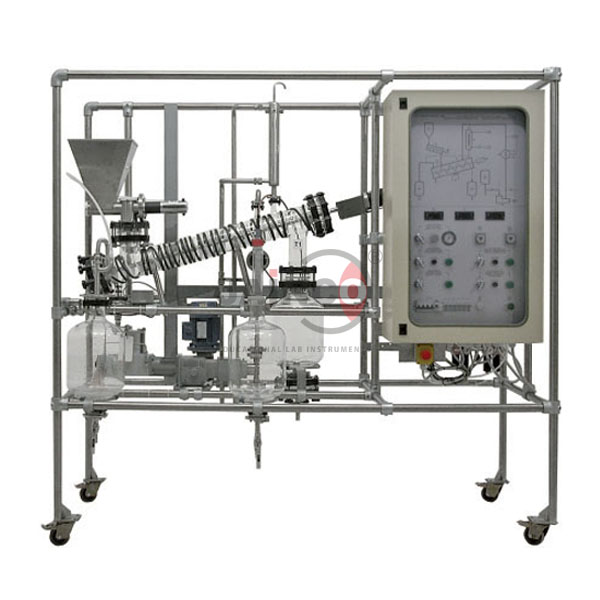

The Manual Solid Liquid Extraction Pilot Plant (SKU JA-CELE-9507) is a continuous screw extractor for leaching a soluble component out of a solid with a solvent. Solids fed from a 2 litre hopper are carried through a 1,000 mm extraction column by a PTFE Archimedean screw while preheated solvent flows through, and the extract and spent solids are collected in 10 litre tanks. Pneumatic devices are set by hand. This solid-liquid extraction plant is supplied by JaincoLab for chemical engineering mass transfer laboratories.
Specifications
The plant has a 1,000 mm extraction column with PTFE Archimedean screw, feed and transport screws driven at 0-20 rpm and 0-10 rpm, a 0.4 kW quartz solvent preheater, a solvent metering pump of 0-12 litres/hour with a 0.2-1.0 bar pneumatic actuator and three Pt100 temperature points.
| Product | Manual Solid Liquid Extraction Pilot Plant |
| SKU | JA-CELE-9507 |
| Extraction column | 1,000 mm, PTFE Archimedean screw |
| Solids hopper | 2 litres |
| Feeding screw drive | Geared motor, 0-20 rpm; 2 programmable timers for start and stop |
| Transporting screw drive | Geared motor, 0-10 rpm |
| Tanks | Solvent 10 litres; extracted product 10 litres; waste solids 10 litres |
| Heating | Thyristor-controlled electric heating unit |
| Temperature | 3 thermocouples with Pt100 probes in stainless steel sleeves, 3 electronic indicators |
| Solvent preheating | Quartz electric heater, 0.4 kW |
| Solvent metering pump | 0-12 litres/hour, pneumatic actuator 0.2-1.0 bar |
| Pneumatic control | 3 manual pneumatic control devices |
| Controls | Electrical control panel in main cabinet; emergency stop |
Experiments with the solid-liquid extraction plant
Students set the solids feed rate, screw speed and solvent flow and temperature, then measure how much solute is recovered in the extract and how much remains in the spent solids.
- Continuous solid-liquid extraction (leaching)
- Effect of solvent flow rate and temperature on recovery
- Effect of solids residence time via screw speed
- Mass balance over solids, solvent and extract
- Mass transfer operations practicals
Scope of supply and ordering
This listing covers the manual solid-liquid extraction plant with extraction column, hopper, screws and drives, tanks, heaters, metering pump, instruments and control panel. Compressed air for the pneumatic devices and the power supply are also confirmed on the quotation.
The Manual Solid Liquid Extraction Pilot Plant can be ordered for a single laboratory or as part of a complete laboratory package for a college or training programme.
Frequently asked questions
How are the solids moved through the column?
By a PTFE Archimedean screw in a 1,000 mm extraction column, fed from a 2 litre hopper.
How is the solvent supplied?
A metering pump of 0-12 litres/hour with a pneumatic actuator, after a 0.4 kW quartz preheater.
What makes this version manual?
The three pneumatic control devices are set by hand.
