Automatic Horizontal Band Saw Manufacturer,Supplier and Exporter in India
Product Code : JA-CLE-9042

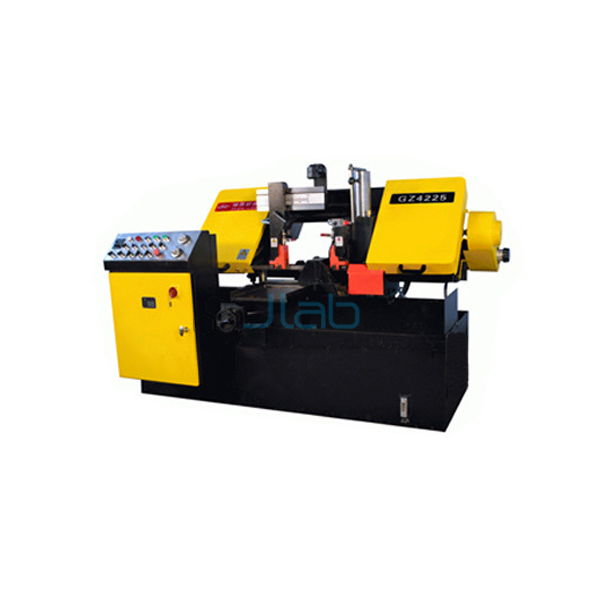

The Automatic Horizontal Band Saw (SKU JA-CLE-9042) is a hydraulic-mechanical automatic horizontal band saw for cutting off metal plates, rods, beams and blooms. It has PLC digital programmable control, a bundling attachment, a swivel mitering work head, hydraulic vises and coolant. Capacity is 457 mm rounds, 457 x 406 mm rectangles and 406 mm squares, with a 32 mm blade and 5.6 kW (7.5 hp) drive. It is supplied by JaincoLab for workshops and fabrication training.
Specifications
The saw cuts rounds to 457 mm, rectangles to 457 x 406 mm and squares to 406 mm with a 32 mm wide blade, takes a maximum work load of 2250 kg, runs on 5.6 kW at 220/440 V AC and weighs about 800 kg.
| Product | Automatic Horizontal Band Saw |
| SKU | JA-CLE-9042 |
| Type | Hydraulic-mechanical automatic horizontal band saw |
| Control | PLC digital programmable control |
| Attachments | Bundling attachment; swivel mitering work head; hydraulic vises; coolant |
| Capacity, rounds | 457 mm (18 in) |
| Capacity, rectangles (W x H) | 457 x 406 mm (18 x 16 in) |
| Capacity, squares | 406 mm (16 in) |
| Blade width | 32 mm |
| Blade speed | 2 - 10 m/min (as listed) |
| Max. work load | 2250 kg |
| Power | 5.6 kW (7.5 hp), 220/440 V AC |
| Overall dimensions (W x D x H) | 85 x 116 x 58 in |
| Weight | 800 kg (max.) |
Applications of the automatic horizontal band saw
In a fabrication or machine shop the band saw cuts bar and section stock to length accurately and repeatably, and with its PLC and mitering head it handles batch and angled cuts.
- Cutting off rods and bars to length
- Cutting plates, beams and blooms
- Bundle cutting with the bundling attachment
- Mitre cuts with the swivel work head
- Fabrication and machine shop training in ITI, polytechnic and B.Tech courses
Scope of supply and ordering
The listing covers the automatic horizontal band saw with PLC control, bundling attachment, mitering head, hydraulic vises and coolant. Spare blades are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Packing, lead time and minimum order quantity depend on the quantity and delivery destination and are confirmed on each quotation. Institutional, bulk and tender orders are supplied, including export orders to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What is the largest round it can cut?
457 mm (18 inch) diameter.
Can it cut bundles and mitres?
Yes. It has a bundling attachment and a swivel mitering work head.
What power does it need?
5.6 kW (7.5 hp) on a 220/440 V AC supply.
