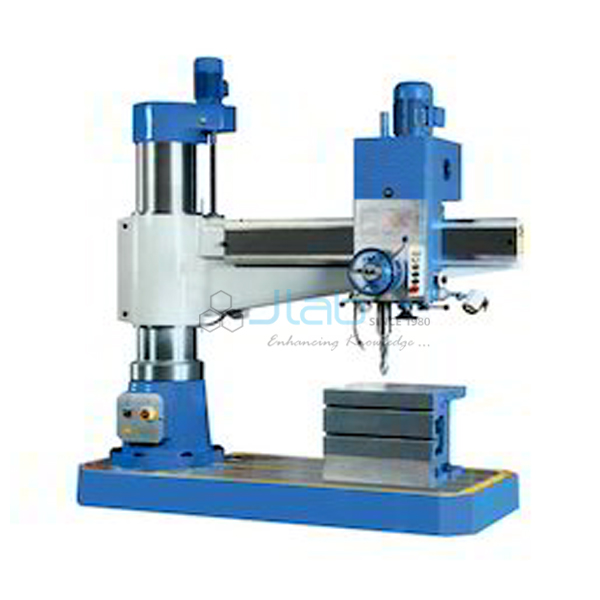

Radial Drilling Machine Manufacturer,Supplier and Exporter in India
Product Code : JA-CLE-9039
The Radial Drilling Machine (SKU JA-CLE-9039) is a heavy radial drilling machine with a 2 m arm swivelling through 360 degrees and a 5.5 kW drive. It drills 60 mm in steel and 80 mm in cast iron, bores 100 mm in steel and taps M50 x 5 in steel and M60 x 5 in cast iron. The MT6 spindle of 65 mm diameter has 30 speeds from 9 to 1800 rpm and feeds of 0.02-2.8 mm/rev, with coolant. It is supplied by JaincoLab.
Specifications
The machine has a 2 m arm with 360 degree swivel, 5.5 kW power, 60/80 mm drilling (steel/cast), 100 mm boring, M50/M60 tapping, 1200 mm maximum spindle to guideways, MT6 65 mm spindle, 30 speeds 9-1800 rpm and 0.02-2.8 mm/rev feeds.
| Product | Radial Drilling Machine |
| SKU | JA-CLE-9039 |
| Arm length | 2 m |
| Power | 5.5 kW |
| Drilling capacity | 60 mm in steel; 80 mm in cast iron |
| Boring capacity in steel | 100 mm |
| Tapping capacity | M50 x 5 in steel; M60 x 5 in cast iron |
| Max. spindle to guideways | 1200 mm |
| Radial arm swivel | 0 - 360 degrees |
| Spindle | Taper MT6, 65 mm diameter |
| Speeds | 30, from 9 to 1800 rpm |
| Feeds | 0.02 - 2.8 mm/rev |
| Coolant | Fitted |
Applications of the radial drilling machine
The radial arm lets the drill head reach any point over a large workpiece without moving it, so students learn drilling, boring and tapping of heavy castings and fabrications.
- Drilling large holes in steel and cast iron
- Boring and counterboring
- Tapping large threads
- Multi-hole work on heavy parts
- Machine shop practicals in ITI, polytechnic and B.Tech courses
Scope of supply and ordering
The listing covers the radial drilling machine as specified, with coolant. Base table, vices and tooling are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Each quotation confirms the MOQ, lead time and packing for this item against the quantity ordered and the delivery destination. Orders for a single laboratory as well as multi-laboratory sets for new institutions are supplied.
Frequently asked questions
What is the drilling capacity?
60 mm in steel and 80 mm in cast iron.
How far does the arm reach?
The arm is 2 m long and swivels 0 to 360 degrees.
What speeds and feeds are available?
30 speeds from 9 to 1800 rpm and feeds of 0.02 to 2.8 mm/rev.
