CNC Lathe Machine Manufacturer,Supplier and Exporter in India
Product Code : JA-CLE-9021

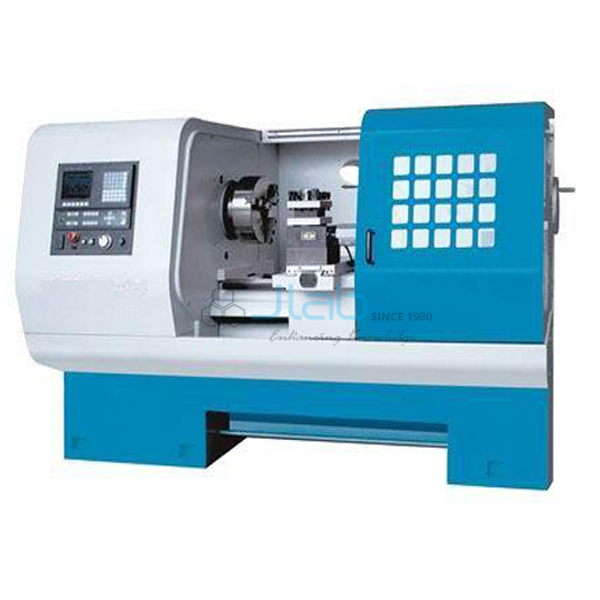

The CNC Lathe Machine (SKU JA-CLE-9021) is a CNC lathe for CAD/CAM and CNC turning labs. A two-speed 4/6 pole three phase spindle motor (2.2/2.8 kW) drives a manual three-jaw chuck, and a gang tool carriage with three gang tool holders takes 15 x 15 or 20 x 20 mm tool shanks. It has thread cutting, a hand wheel, coolant pump, work lamp and an enclosed ball screw shield. It is supplied by JaincoLab for engineering colleges and polytechnics.
Specifications
The lathe has a two-speed 4/6 pole 3 phase 2.2/2.8 kW spindle motor, manual three-jaw chuck, gang tool carriage with 3 holders for 15 x 15 or 20 x 20 mm shanks, measures 1270 x 950 x 1450 mm and weighs about 800 kg.
| Product | CNC Lathe Machine |
| SKU | JA-CLE-9021 |
| Spindle motor | Two-speed 4/6 pole, 3 phase, 2.2/2.8 kW |
| Chuck | Manual three-jaw chuck (1 pc) |
| Tooling | Gang tool carriage and gang tool holders (3 pcs) |
| Tool shank size | 15 x 15 mm or 20 x 20 mm |
| Functions | Threading; hand wheel; coolant pump; working lamp; enclosed ball screw shield |
| Overall dimensions | 1270 (L) x 950 (W) x 1450 (H) mm |
| Net weight | 800 kg |
| CNC control | Confirmed on the quotation |
Applications of the CNC lathe machine for training
Students program and run turning, facing, grooving and threading operations, learning CNC lathe setting with gang tooling and moving on to production-style part programs.
- CNC turning and facing programs
- Thread cutting with the threading function
- Gang tooling set-up
- Tool offsets and part zero setting
- CNC and CAD/CAM practicals in B.Tech, diploma and ITI courses
Scope of supply and ordering
The listing covers the CNC lathe as specified, with three-jaw chuck and gang tool holders. CNC control, software and additional tooling are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
There is no fixed MOQ on this listing: minimum quantity, lead time and packing are stated on the quotation for your order size and destination. Bulk college, polytechnic and tender orders are supplied.
Frequently asked questions
What spindle motor is fitted?
A two-speed 4/6 pole, 3 phase motor rated 2.2/2.8 kW.
What tool shanks does it take?
15 x 15 mm or 20 x 20 mm, in a gang tool carriage with three holders.
How large and heavy is it?
1270 x 950 x 1450 mm and about 800 kg net.
Related products
See the complete mechanical engineering laboratory range for engineering colleges, polytechnics and ITIs.
Request a quote
To order the CNC Lathe Machine, send the quantity and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-CLE-9021. Tender and project enquiries can be sent through the tenders page.
