CNC Milling Machine XL Manufacturer,Supplier and Exporter in India
Product Code : JA-CLE-9027

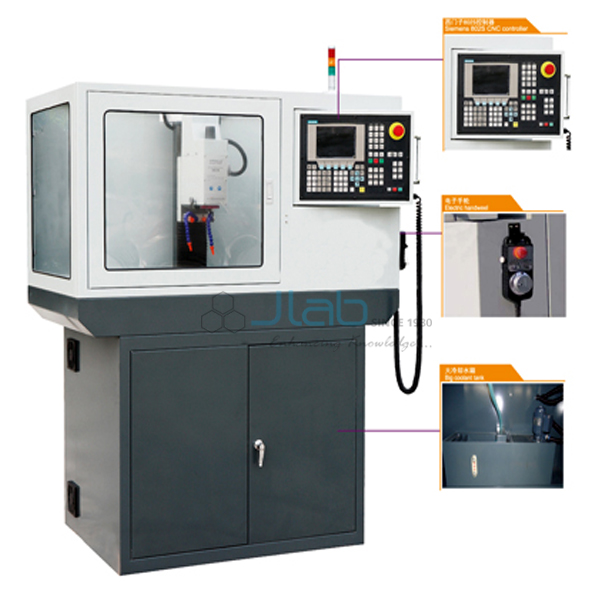

The CNC Milling Machine XL (SKU JA-CLE-9027) is a bench-scale CNC milling machine for CAD/CAM and CNC programming labs. It drills up to 20 mm, face mills up to 63 mm and end mills up to 20 mm on a 700 x 180 mm working table, with a listed positioning accuracy of +/-0.025 mm per 300 mm. An 850 W, 230 V motor drives the spindle and a 40 W coolant pump is fitted. It is supplied by JaincoLab for engineering colleges and polytechnics.
Specifications
The machine has 20 mm drilling, 63 mm face milling and 20 mm end milling capacity, a 700 x 180 mm table, +/-0.025/300 mm positioning accuracy, an 850 W 230 V 50 Hz motor and a 40 W coolant pump.
| Product | CNC Milling Machine XL |
| SKU | JA-CLE-9027 |
| Max. drilling capacity | 20 mm |
| Max. face milling capacity | 63 mm |
| Max. end milling capacity | 20 mm |
| Working table size | 700 x 180 mm |
| Positioning accuracy | +/-0.025 mm / 300 mm |
| Motor power | 850 W, 230 V, 50 Hz |
| Coolant pump | 40 W |
| Controller and software | Confirmed on the quotation |
Applications of the CNC milling machine for CAD/CAM labs
Students take a part from CAD model to CAM toolpath and then cut it on the machine, learning G-code, work offsets and tooling on a machine sized for a teaching lab.
- CNC part programming and G-code
- CAD to CAM to machining workflow
- Face milling, end milling and drilling practice
- Work offsets and tool setting
- CAD/CAM and manufacturing practicals in B.Tech, diploma and ITI courses
Scope of supply and ordering
The listing covers the CNC milling machine as specified. CNC control, CAM software, tooling and vice are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Each quotation confirms the MOQ, lead time and packing for this item against the quantity ordered and the delivery destination. Orders for a single laboratory as well as multi-laboratory sets for new institutions are supplied.
Frequently asked questions
What are the milling capacities?
Drilling up to 20 mm, face milling up to 63 mm and end milling up to 20 mm.
How large is the table?
700 x 180 mm.
What positioning accuracy is listed?
+/-0.025 mm per 300 mm.
