Axial Fan Demonstration Unit

Product Code : JA-FMAHLE-9968
Jainco Lab is a leading Axial Fan Demonstration Unit Manufacturer,and suppliers in India, Axial Fan Demonstration Unit Manufacturer,and suppliers in South Africa, Axial Fan Demonstration Unit Algeria (Algiers), Axial Fan Demonstration Unit Angola (Luanda), Axial Fan Demonstration Unit Argentina (Buenos Aires), Axial Fan Demonstration Unit Armenia (Yerevan), Axial Fan Demonstration Unit Australia (Canberra), Axial Fan Demonstration Unit Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

Axial Fan Demonstration Unit
Specification:-
Transparent ducts give visibility of the fan in operation.
Capable of being linked to a PC via a dedicated interface console (an essential accessory).
Supplied with software  providing full instructions for setting up, operating, calibrating and performing the teaching exercises.

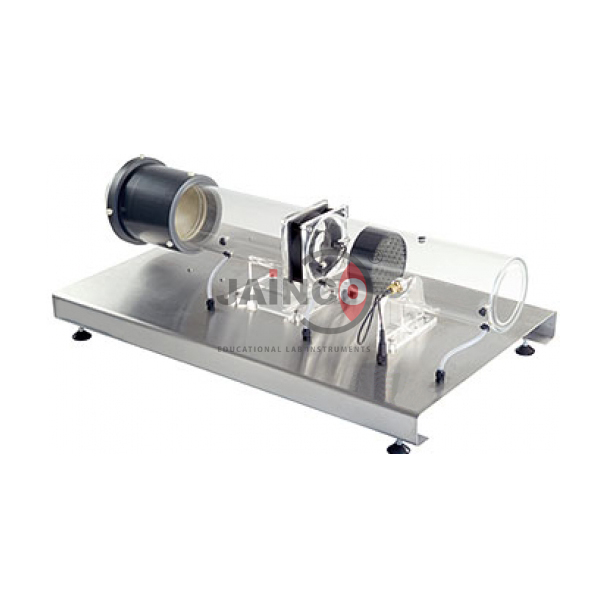

A small-scale axial fan demonstration unit, comprising of an inlet duct, the fan, an outlet duct and an adjustable aperture, all mounted on a stainless steel base.
Full theoretical back-up together with a student questions and answers session.
Equipped with electronic measurement sensors for fan head pressure, flow-rate (via orifice plate), fan speed and air temperature.
Facilities for logging, processing and displaying data graphically.

Description:-
A calibrated orifice plate is used on the discharge to measure the air flow rate.
Electronic sensors measure the pressure head developed across the fan, the pressure across the orifice plate (and hence the flow rate), the rotational speed of the fan and the air temperature.
An axial fan, mounted on a stainless steel plinth.
Transparent air inlet and air outlet ducts allow the fan construction to be clearly observed.
A manually operated adjustable aperture allows the air flow rate to be varied.
The fan speed is controlled by modulated dc supply, complete with current sensing to allow the power drawn by the fan to be measured.

Technical Specification:-
Max Flow Rate: 38 l/s typical
Motor Power rating 5W
Max Head: 0.06 KPa
Max fan speed 2700rpm
