Beam Moulds Manufacturer,Supplier and Exporter in India
Product Code : JA-STE-3412

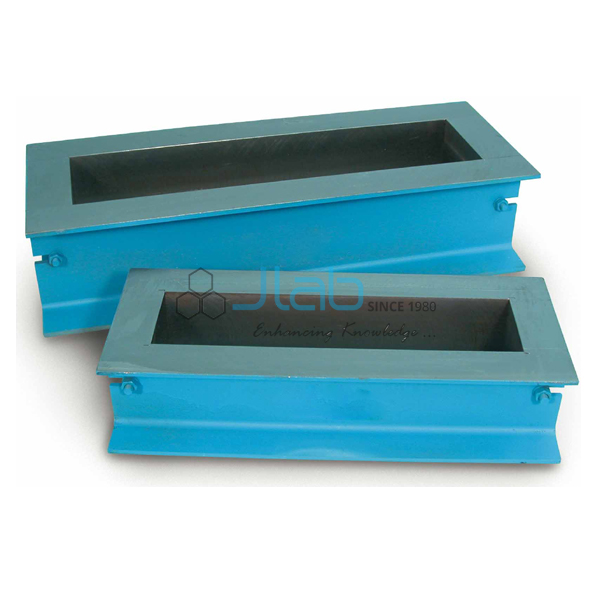

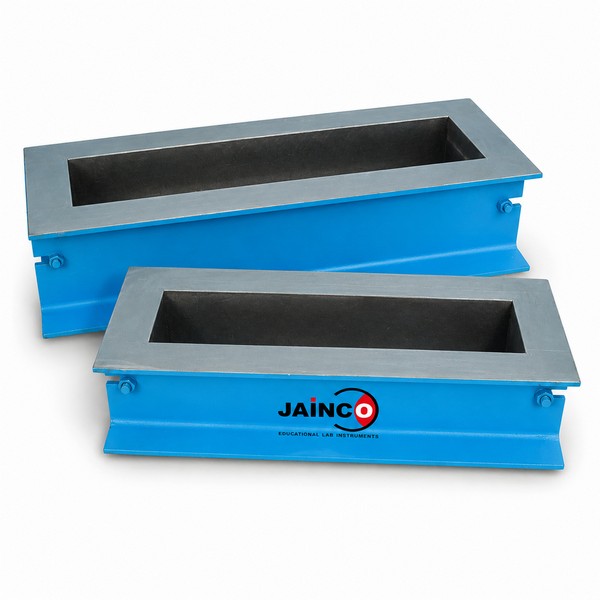

Beam moulds (SKU JA-STE-3412) are used to cast concrete beam specimens for flexural strength testing. They are offered in five sizes, made in cast iron or mild steel, and supplied complete with a base plate. A mild steel tamping bar is available as an optional accessory. JaincoLab makes the beam moulds for concrete testing laboratories in engineering colleges, polytechnics, site labs and ready-mix plants.
Specifications
The beam moulds are made in cast iron or mild steel in five sizes, each with a base plate; the optional tamping bar is mild steel with a 25 x 25 mm ramming face, 400 mm long and 2 kg in weight.
| Product | Beam Moulds |
| SKU | JA-STE-3412 |
| Use | Casting concrete specimens for flexural strength testing |
| Sizes | Five sizes; confirmed on the quotation |
| Material | Cast iron or mild steel |
| Base plate | Supplied with each mould |
| Optional tamping bar | Mild steel, 25 x 25 mm square ramming face, 400 mm long, 2 kg |
Applications of concrete beam moulds
Concrete beam moulds are filled and compacted with fresh concrete, cured and stripped to give beams that are broken in a flexure testing machine to find the modulus of rupture of the concrete.
- Casting beams for flexural strength (modulus of rupture) tests
- Concrete mix design trials
- Quality control on construction sites and ready-mix plants
- Concrete technology practicals in civil engineering and polytechnic courses
- Pavement concrete testing
Scope of supply and ordering
The listing covers beam moulds in the chosen size and material with base plate; the tamping bar is optional. Sizes, quantities and accessories are confirmed on the quotation.
MOQ, lead time and packing for beam moulds are confirmed on each quotation for the sizes, material, quantity and delivery destination. Single moulds and laboratory sets are supplied, including export to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What are beam moulds used for?
Casting concrete beam specimens for flexural strength testing.
Which materials are available?
Cast iron and mild steel; each mould is supplied with a base plate.
Is a tamping bar available?
Yes. A mild steel tamping bar with a 25 x 25 mm ramming face, 400 mm long and 2 kg, is available as an option.
Related products
Other concrete and soil test apparatus are listed in the JaincoLab soil testing equipment range.
Request a quote
To order the beam moulds, send the quantity and delivery destination through the JaincoLab contact page or email [email protected]. For tender or project supply, see our tenders page.
