Concrete Vibrator Manufacturer,Supplier and Exporter in India
Product Code : JA-STE-3418

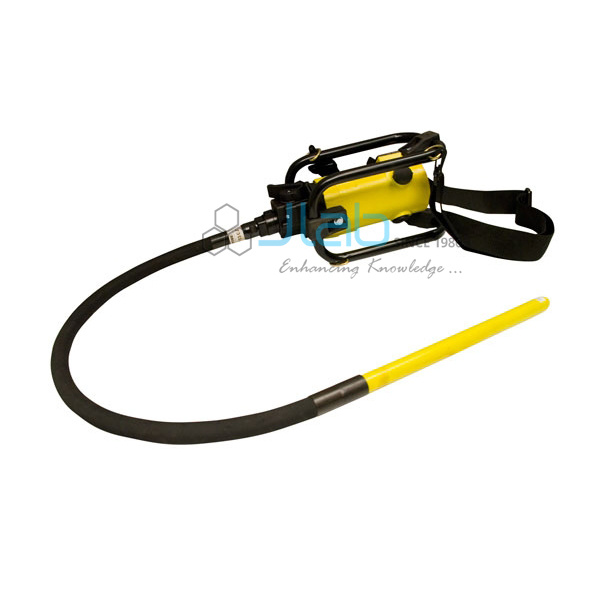

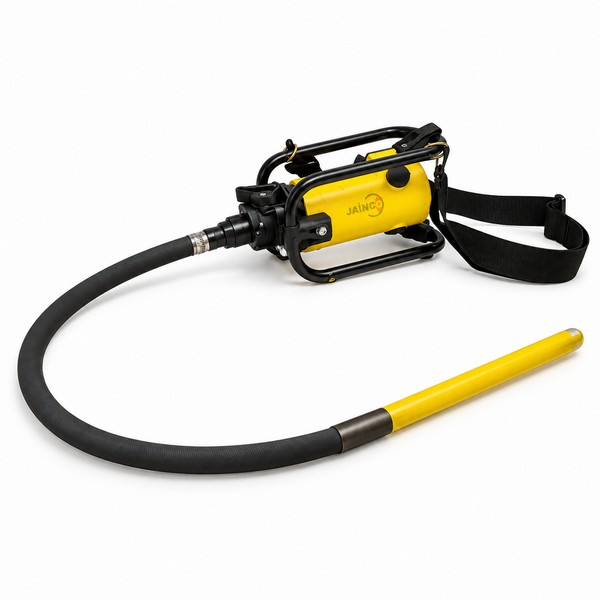

The concrete vibrator (SKU JA-STE-3418) is a high frequency poker vibrator for compacting fresh concrete in forms and moulds. Needles of the out-of-balance rotor type or pendulum type come in 25, 40, 50 and 60 mm diameters on a 4 m or 6 m flexible shaft, driven by an electric motor, a petrol engine or a petrol/kerosene engine. It is supplied by JaincoLab for construction sites, precast yards and concrete laboratories.
Specifications
The concrete vibrator has out-of-balance rotor or pendulum type needles of 25, 40, 50 or 60 mm diameter, a 4 m or 6 m flexible shaft with easy connections, and a motor, petrol or petrol/kerosene engine drive giving high frequency, large amplitude vibration.
| Product | Concrete Vibrator |
| SKU | JA-STE-3418 |
| Needle types | Out-of-balance rotor type; pendulum type |
| Needle diameters | 25 mm, 40 mm, 50 mm and 60 mm |
| Flexible shaft | 4 m or 6 m |
| Drive | Electric motor, petrol engine or petrol/kerosene engine |
| Connections | Easy connection of drive shafts to the unit |
| Engine and motor ratings | Confirmed on the quotation |
Applications of the concrete poker vibrator
The concrete poker vibrator is inserted into freshly placed concrete to remove entrapped air and compact it quickly and reliably, which improves strength and finish in slabs, beams, columns and precast units.
- Compacting concrete in slabs, beams, columns and walls
- Precast concrete production
- Concrete compaction in laboratory trial mixes
- Road and pavement concreting
- Construction technology training in polytechnics and ITIs
Scope of supply and ordering
The listing covers the concrete vibrator with the chosen needle type and diameter, flexible shaft length and drive unit. Motor or engine rating and spare needles are confirmed on the quotation with quantities.
MOQ, lead time and packing for the concrete vibrator are confirmed on each quotation for the needle size, shaft, drive and delivery destination. Single units and site or project quantities are supplied, with export to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Which needle sizes are available?
25, 40, 50 and 60 mm diameter needles, of the out-of-balance rotor or pendulum type.
What shaft lengths are offered?
Flexible shafts of 4 m or 6 m.
What can drive the vibrator?
An electric motor, a petrol engine or a petrol/kerosene engine.
Related products
Concrete and soil test apparatus are listed in the JaincoLab soil testing equipment range.
Request a quote
To order the concrete vibrator, send the quantity and delivery destination through the JaincoLab contact page or email [email protected]. Buying under a laboratory tender? Use our tenders page.
