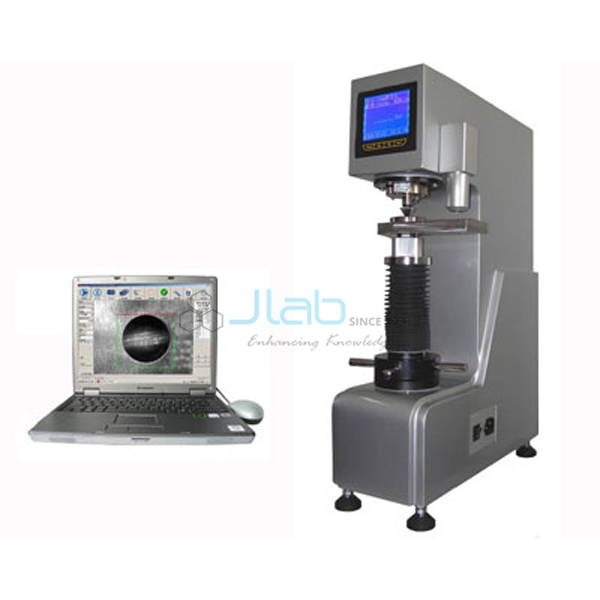

Brinell Hardness Tester Manufacturer,Supplier and Exporter in India
Product Code : JA-SOMLE-8917
The Brinell Hardness Tester (SKU JA-SOMLE-8917) is a hydraulic Brinell hardness tester with a hydraulic power pack and control circuit for effortless loading and unloading. A dial gauge in front measures the depth of ball penetration, which supports production testing within tolerance limits by comparison. Load is applied in stages of 250 kgf, with 410 mm maximum test height and 200 mm throat. It is supplied by JaincoLab for materials testing labs.
Specifications
The tester loads in stages of 250 kgf from a 250 kgf initial load, takes work up to 410 mm high with a 200 mm throat, stands 1127 mm high on a 670 x 370 mm base and weighs about 450 kg.
| Product | Brinell Hardness Tester |
| SKU | JA-SOMLE-8917 |
| Loading | Hydraulic power pack and control circuit |
| Load range | In stages of 250 kgf |
| Initial load | 250 kgf |
| Maximum test height | 410 mm |
| Depth of throat | 200 mm |
| Size of base | 670 x 370 mm |
| Machine height | 1127 mm |
| Net weight (approx.) | 450 kg |
| Measurement | Dial gauge for depth of ball penetration |
Applications of the Brinell hardness tester
The Brinell test presses a hard ball into the metal and relates the impression to hardness, suiting coarse-grained metals, castings and forgings that students test in the materials lab.
- Brinell hardness of steels and cast iron
- Hardness of non-ferrous castings
- Comparative testing within tolerance limits
- Effect of heat treatment on hardness
- Materials testing practicals in B.Tech, diploma and ITI courses
Scope of supply and ordering
The listing covers the hydraulic Brinell hardness tester as described. Ball indenters, anvils and a measuring microscope are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
There is no fixed MOQ on this listing: minimum quantity, lead time and packing are stated on the quotation for your order size and destination. Bulk college, polytechnic and tender orders are supplied.
Frequently asked questions
How is the load applied?
By a hydraulic power pack and control circuit for effortless loading and unloading.
What load steps are available?
Load is applied in stages of 250 kgf, from an initial load of 250 kgf.
How large a part can be tested?
Up to 410 mm high, with a 200 mm throat depth.
