Erichen Cupping Testing Machine Manufacturer,Supplier and Exporter in India
Product Code : JA-SOMLE-8908

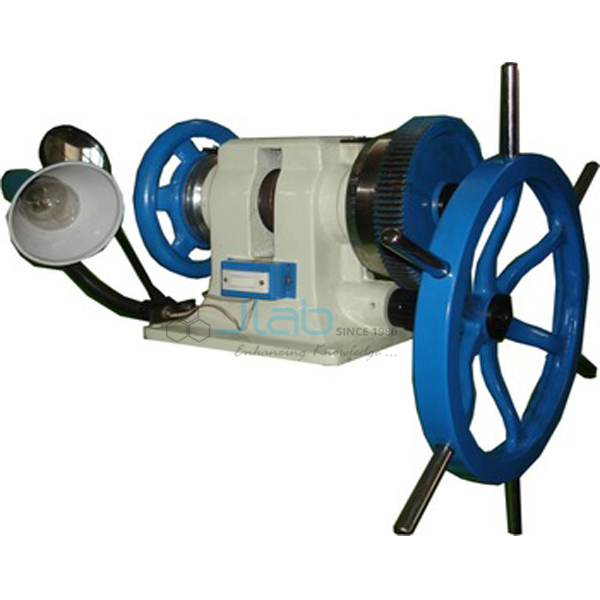

The Erichen Cupping Testing Machine (SKU JA-SOMLE-8908) is an Erichsen cupping tester for carrying out the Erichsen cupping test on metal sheet, which assesses the ductility and formability of thin sheet by pressing a punch into it until it cracks. Quick clamping and manual operation make each test fast and simple. It takes samples 70 to 90 mm wide and 0.1 to 2 mm thick, with a least count of 0.01 mm. It is supplied by JaincoLab for materials testing labs.
Specifications
The tester takes sheet samples 70-90 mm wide and 0.1-2 mm thick, reads to 0.01 mm, measures about 450 x 500 x 500 mm and weighs about 20 kg net.
| Product | Erichen Cupping Testing Machine |
| SKU | JA-SOMLE-8908 |
| Test | Erichsen cupping test on metals |
| Width of sample | 70 - 90 mm |
| Thickness of sample | 0.1 - 2 mm |
| Least count | 0.01 mm |
| Operation | Manual, with quick clamping |
| Overall dimensions (approx.) | 450 x 500 x 500 mm |
| Net weight (approx.) | 20 kg |
Applications of the Erichsen cupping tester
The cupping test gives a quick, practical measure of how well a metal sheet will stretch before cracking, which students relate to deep drawing and sheet metal forming.
- Erichsen cupping index of metal sheet
- Comparing ductility of different sheet materials
- Formability for deep drawing and pressing
- Effect of sheet thickness on cup depth
- Materials testing and manufacturing process practicals in B.Tech and diploma courses
Scope of supply and ordering
The listing covers the manual Erichsen cupping testing machine as described. Punches, dies and sample sheets are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing for the Erichen Cupping Testing Machine are confirmed on each quotation for the quantity and delivery destination. Single units for one laboratory and complete sets for institutions or training programmes are both supplied.
Frequently asked questions
What sample sizes does it take?
Sheets 70 to 90 mm wide and 0.1 to 2 mm thick.
What is the least count?
0.01 mm.
Is it motorised?
No. It is manually operated with quick clamping.
