Universal Profile Projector Manufacturer,Supplier and Exporter in India
Product Code : JA-SOMLE-8926

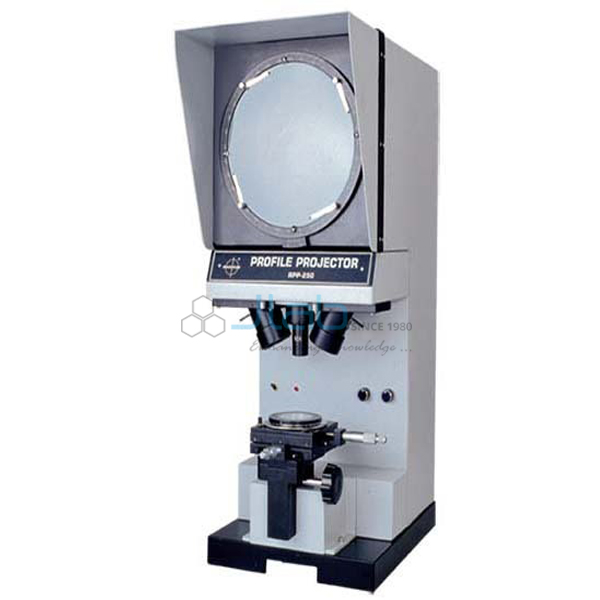

The Universal Profile Projector (SKU JA-SOMLE-8926) is a profile projector for inspecting profiles and templates and for precision measurement of length and angle. It offers 10X, 25X and 50X magnification, a linear capacity of 0 to 25 mm with 0.001 mm resolution and an angular capacity of 0 to 360 degrees with 1 minute of arc resolution. This universal profile projector is supplied by JaincoLab for metrology labs in engineering colleges, polytechnics and toolrooms.
Specifications
The projector has 10X, 25X and 50X magnifications, a linear range of 0-25 mm at 0.001 mm resolution and an angular range of 0-360 degrees at 1 minute of arc resolution.
| Product | Universal Profile Projector |
| SKU | JA-SOMLE-8926 |
| Uses | Inspection of profiles and templates; precision length and angle measurement |
| Magnifications | 10X, 25X and 50X |
| Linear capacity | 0 - 25 mm |
| Linear resolution | 0.001 mm |
| Angular capacity | 0 - 360 degrees (listed as 0 - 3600) |
| Angular resolution | 1 min of arc |
Applications of the universal profile projector
The projector throws an enlarged shadow of a small part onto a screen, where students compare it with an overlay or measure it directly, a fast way to check gear teeth, threads and form tools.
- Profile inspection of small machined parts
- Checking templates and form tools
- Thread and gear tooth profile checks
- Length measurement to 0.001 mm
- Metrology practicals in B.Tech, diploma and toolroom courses
Scope of supply and ordering
The listing covers the universal profile projector as described. Overlay charts, fixtures and lens sets beyond the listed magnifications are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Packing, lead time and minimum order quantity depend on the quantity and delivery destination and are confirmed on each quotation. Institutional, bulk and tender orders are supplied, including export orders to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Which magnifications are available?
10X, 25X and 50X.
What is the linear range and resolution?
0 to 25 mm with 0.001 mm resolution.
Can it measure angles?
Yes, over 0 to 360 degrees with 1 minute of arc resolution.
Related products
- Computer Aided Optical Comparator
- Auto Collimator
- Angle Dekkor
- Floating Carriage Diameter Measuring Machine
Browse the full mechanical engineering lab equipment range from JaincoLab, covering strength of materials, metrology, machine dynamics and workshop equipment.
Request a quote
For a quotation on the Universal Profile Projector (SKU JA-SOMLE-8926), use the JaincoLab enquiry page with the number of units required and the delivery destination. Buying under a laboratory tender? Use our tenders page.
