Floating Carriage Diameter Measuring Machine Manufacturer,Supplier and Exporter in India
Product Code : JA-SOMLE-8927

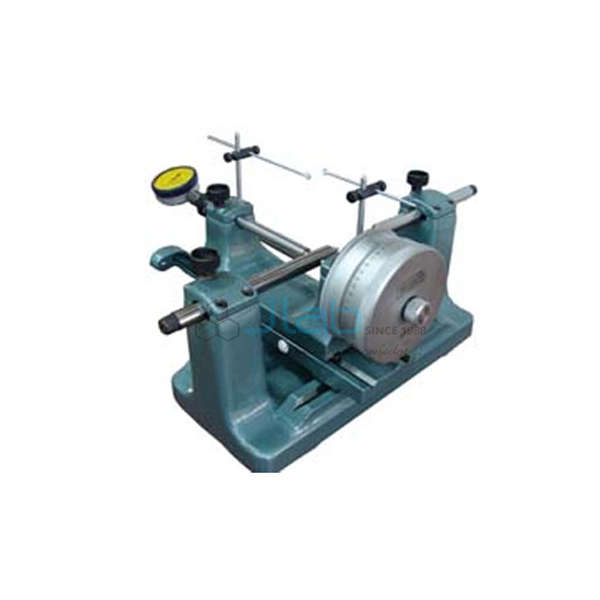

The Floating Carriage Diameter Measuring Machine (SKU JA-SOMLE-8927) is a floating carriage micrometer for measuring external plain diameters and external screw threads, both parallel and taper, with threads square to the axis. Its measuring range is 0 to 100 mm. The floating carriage lets the measuring head move freely along the work so readings are taken without side force. It is supplied by JaincoLab for metrology labs in engineering colleges, polytechnics and toolrooms.
Specifications
The machine measures external plain diameters and parallel or taper external screw threads over a range of 0 to 100 mm; least count and accessories are confirmed on the quotation.
| Product | Floating Carriage Diameter Measuring Machine |
| SKU | JA-SOMLE-8927 |
| Measuring range | 0 - 100 mm |
| Functions | External plain diameters (parallel) |
| Screw threads | External screw threads, parallel and taper, with threads square to the axis |
| Least count and accessories | Confirmed on the quotation |
Applications of the floating carriage micrometer
The machine is used in metrology practicals to measure the effective and major diameters of external threads and plain gauges, using wires or prisms as the thread method requires.
- Measuring external plain diameters
- Measuring parallel external screw threads
- Measuring taper external screw threads
- Thread effective diameter by the wire method
- Screw thread metrology practicals in B.Tech and diploma courses
Scope of supply and ordering
The listing covers the floating carriage diameter measuring machine as described. Thread measuring wires, prisms and centres are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Each quotation confirms the MOQ, lead time and packing for this item against the quantity ordered and the delivery destination. Orders for a single laboratory as well as multi-laboratory sets for new institutions are supplied.
Frequently asked questions
What is the measuring range?
0 to 100 mm.
Can it measure taper threads?
Yes. It measures external screw threads, both parallel and taper, having threads square to the axis.
Does it measure plain diameters?
Yes. External plain parallel diameters can be measured.
Related products
See the complete mechanical engineering laboratory range for engineering colleges, polytechnics and ITIs.
Request a quote
Request the price and specification sheet for the Floating Carriage Diameter Measuring Machine through the JaincoLab contact page; mention SKU JA-SOMLE-8927, the quantity and where it is to be delivered. Institutions and contractors buying under a tender can also reach us via the tenders page.
