CBR Test Machine Hand Operated Manufacturer,Supplier and Exporter in India

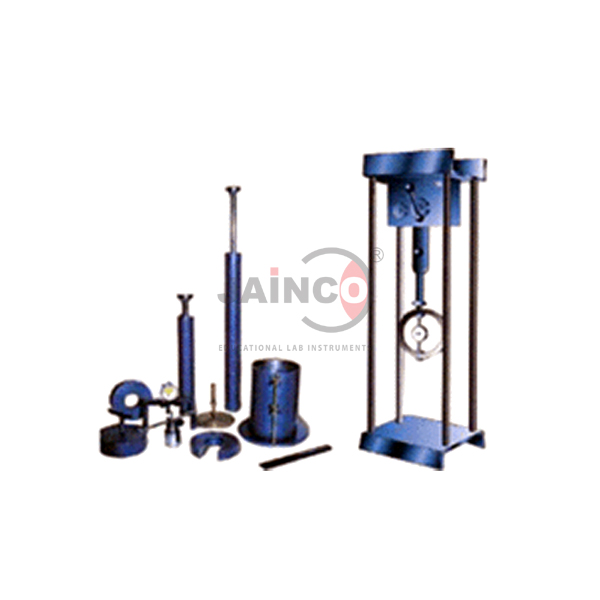

CBR Test Machine Hand Operated

Product Code : JA-SM-8862
Jaincolab is a leading CBR Test Machine Hand Operated Manufacturer,and suppliers in India, CBR Test Machine Hand Operated Manufacturer,and suppliers in South Africa, CBR Test Machine Hand Operated Algeria (Algiers), CBR Test Machine Hand Operated Angola (Luanda), CBR Test Machine Hand Operated Argentina (Buenos Aires), CBR Test Machine Hand Operated Armenia (Yerevan), CBR Test Machine Hand Operated Australia (Canberra), CBR Test Machine Hand Operated Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

CBR (California Bearing Ratio) Test Machine Hand Operated
Specification:-
Circular metal space disc, 148mm Dia x 47.7mm high, with detachable handle.
Annular metal weight, 2.5 kg, 147mm dia with 53mm dia central hole.
The equipment consists one each of the following:-
Load Frame, Hand operated, Capacity 5000kg. with high and low rates of travel of the load screw.
Mould-made frame Gun-metal/Brass, 150mm internal dia x 175mm high, with the perforated base plate and extension collar 50mm high.
Penetration piston, face dia 50mm with adjustable bracket for penetration dial gauge.
Slotted metal weight, 2.5 kg, 147 mm dia with 53 dia slot.
Perforated plate made of gun-metal/brass 148mm dia with adjustable stem and lock nut and a metal tripod for dial gauge.
Cutting collar, Rammer 2.6 kg.
Weight with the drop of 310mm.
Rammer 4. 89 kg.
With a drop of 450mm.
Supplied without proving ring and dial gauge.
