Field CBR Equipment Manufacturer,Supplier and Exporter in India

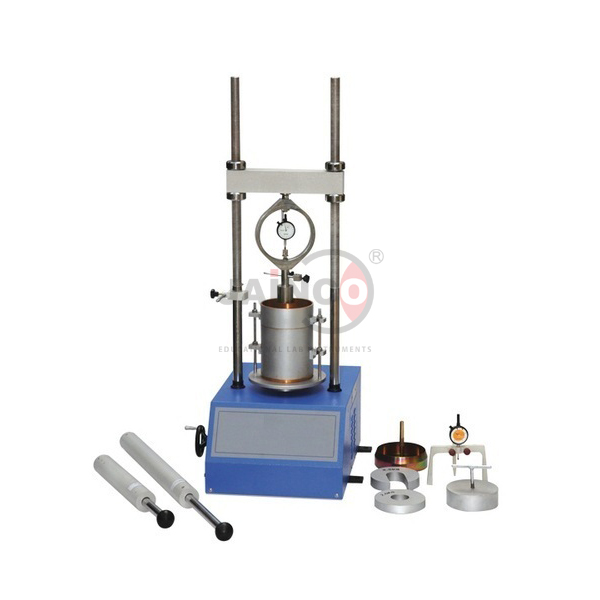

Field CBR Equipment

Product Code : JA-SM-8861
Jainco Lab is a leading Field CBR Equipment Manufacturer,and suppliers in India, Field CBR Equipment Manufacturer,and suppliers in South Africa.Field CBR Equipment Suppliers in Mozambique,Field CBR Equipment A quality product from Jainco lab ideal for use in School Laboratories in developing countries of Asia, Africa and South Africa in Supplier Kenya, Southern African region, Botswana, Lesotho, Malawi, Angola, Namibia, Zambia, Zimbabwe. Djibouti, Ethiopia,Madagascar, Mauritius, Rwanda, Seychelles, Tanzania and Uganda.

Field CBR Equipment
Measuring in soil bearing capacity.

Field CBR Jack 50kN capacity; weight 8.5 kg; total height: 254mm.
1 Proving Ring, 28 kN capacity.
1 Ball Seating Attachment.
1 Proving Ring, 10 kN capacity.
Proving Ring, 50kN capacity.
Field Penetration Piston 50 mm Dia. threaded at the upper end.
Extension Rod machined from steel tubing, consisting of 2 lengths 5 cm., 2 lengths 10 cm., 1 length 30 cm., 1 length 50 cm., and 1 length 100 cm., used as spacers between the proving ring and penetration piston.
1 Bracket and Adapter.
1 Bridge Support.
1 Penetration Dial Indicator.
1 Circular 4.54 kg Surcharge Weight. 250 mm dia with 53 mm dia central hole.
Dial gauge support of seamless pipe construction, 30 cm high and 45 cm wide at the base, with a quick release screw type clamp capable of sliding and locking anywhere along the 2-meter length of the bridge.
1 Slotted (4.54 kg) Surcharge Weight. 215 mm to 250 mm dia with 53 mm dia slot.
1 Slotted (9.07 kg) Surcharge Weight 215 mm to 250 mm dia with 53 dia slot.

Dial gauge 0.01mm x 25mm.
