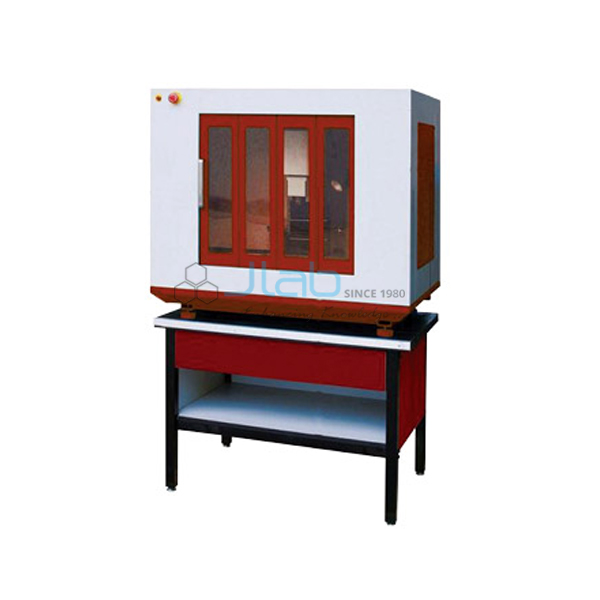

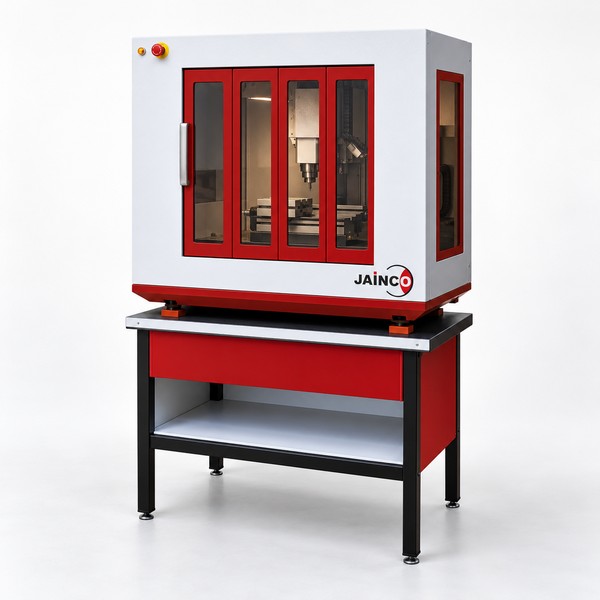

CNC Milling Machine Table Model

CNC Milling Machine Table Model

Product Code : JA-CTM-9014

CNC Milling Machine Table Model
Specifications :
Drilling Capacity: 10mm (3/8”)
Worktable T-Slot Size: 8mm (0.31”)
No. of T-Slot on Table : 3
Max. Loading of Worktable: 20 kg
Table Travel z-axes: 180mm (7”)
X Axes Feeding Motor Power: 1.35Nm
Z Axes Feeding Motor Power: 2.2Nm
X/ Y/ Z Axes Max. Moving Speed: 2m/min
Worktable Size : 400 x 145mm (16” x 5.7”)
X/ Y/ Z Axes Feeding Speed : 500mm/min
Table Travel x-axes: 260mm (10”)
Machine Size (L x W x H) : 1040 x 860 x 940 mm
Table Travel y-axes: 110mm (4.3”)
Throat: 150mm (5.9”)
Position Precision : 0.015mm
Repeat Positioning Precision: 001mm
Spindle Speed: 100-7000rpm
Spindle Motor: 500w
Y Axes Feeding Motor Power: 1.35Nm
G.W./N.W. : 218/178 kg
