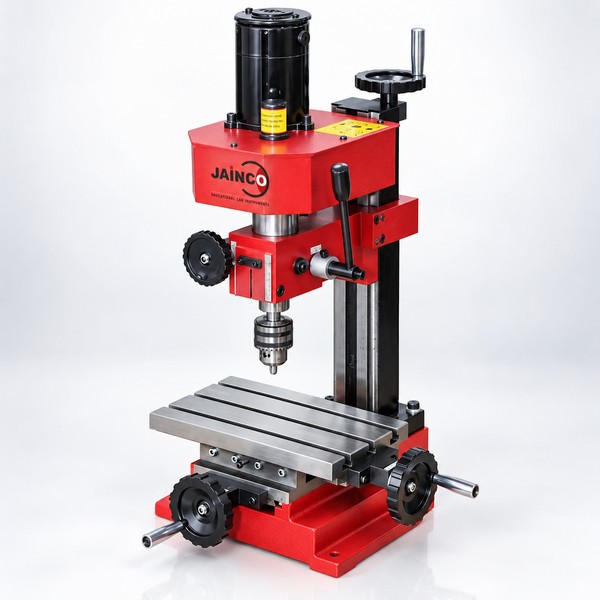

CNC Micro Mill

Product Code : JA-CTM-9071
Jainco Lab is a leading CNC Micro Mill Manufacturer,and suppliers in India, CNC Micro Mill Manufacturer,and suppliers in South Africa.CNC Micro Mill Suppliers in Mozambique,CNC Micro Mill A quality product from Jainco lab ideal for use in School Laboratories in developing countries of Asia, Africa and South Africa in Supplier Kenya, Southern African region, Botswana, Lesotho, Malawi, Angola, Namibia, Zambia, Zimbabwe. Djibouti, Ethiopia,Madagascar, Mauritius, Rwanda, Seychelles, Tanzania and Uganda.

CNC Micro Mill
Description:-
The desktop machining system with capabilities to produce most anything from very simple to very complex geometric forms in wood, plastic, aluminum or steel.

Machine Feature:-
Stepping Resolution: 0.003mm
Mechanical repeat ability: 0.01mm
Spindle Speed 1100 - 11000 RPM
Travel: X = 300mm, Y = 146mm, Z = 153mm
Adjustable tapered brass gib on X-axis
Ground steel sliding ways with adjustable brass gib
Rapid Travel of 30 in/min
Universal Standard G-Code import
Precision Mechanics
Box way Z-axis assembly with ground steel plate and tapered brass gib
Hard anodized aluminum table
1/2" (12.7mm) 20 pitch Cr-Mo lead screws

Complete System Includes:
MicroMill with New Powerful 1/4 HP spindle motor.
Pulley set with the drive belt.
Any one 3mm / 4mm / 6mm collet with collet closer.
Electronic Chopper Driver Unit.
Input/Output Port Included.
200 oz-in. stepping motors.
Custom Win XP Mach 3 control software interface.
4th Axis Amplifier and Port (optional)
Printer cable, power cable.
