Concrete Cover Meter Manufacturer,Supplier and Exporter in India

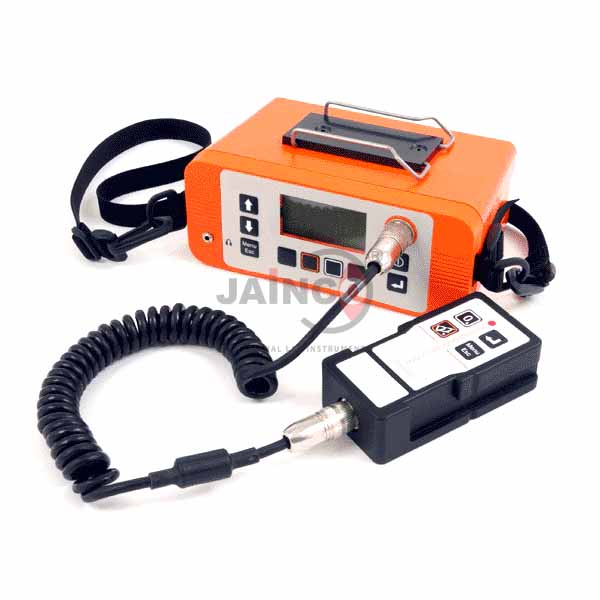

Concrete Cover Meter

Product Code : JA-CL-8850
Jaincolab is a leading Concrete Cover Meter Manufacturer,and suppliers in India, Concrete Cover Meter Manufacturer,and suppliers in South Africa, Concrete Cover Meter Algeria (Algiers), Concrete Cover Meter Angola (Luanda), Concrete Cover Meter Argentina (Buenos Aires), Concrete Cover Meter Armenia (Yerevan), Concrete Cover Meter Australia (Canberra), Concrete Cover Meter Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

Concrete Cover Meter
Uses of Concrete Cover Meter:-
For non-standard bar sizes, large diameter pipes or other pre-fabricated items.
Reinforcement depth measurement Bar size can be preset if known or detected automatically for survey and investigation tasks.
It can also show absolute measurements that can be used to look up cover using custom tables.
For immediate results on-site, the onscreen gauge and audio feedback rapidly pin-point rebar location and orientation.

Accuracy:-
± 1 mm up to 60 mm cover
± 2 mm up to 120 mm
± 3 mm up to 160 mm
± 4 mm over 160 mm Automatic Bar
Sizing Accuracy ± 0.5 mm – ± 1.5 mm

Resolution : 0.1 mm
Operating Depth 6 mm bar up to 60 mm cover 40 mm bar up to 80 mm cover
Bar Resolution Bar size: 16 mm Cover: 60 mm Minimum spacing: 70 mm
Bar size: 16 mm Cover: 100 mm Minimum spacing: 110 mm
Bar size: 25 mm Cover: 130 mm Minimum spacing: 150 mm
Operating Weight 800 g Battery Operation 20 hrs

Probe with integral cable.
Battery charger.
Spare probe sole-plate.
Certificate of Conformity.
Light & tough equipment bag.
