Digital Point Load Tester Manufacturer,Supplier and Exporter in India

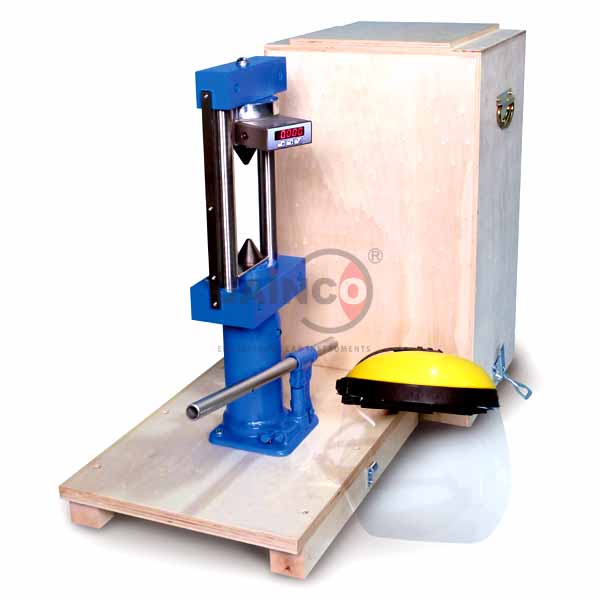

Digital Point Load Tester

Product Code : JA-CL-8857
Jainco Lab is a leading Digital Point Load Tester Manufacturer,and suppliers in India, Digital Point Load Tester Manufacturer,and suppliers in South Africa.Digital Point Load Tester Suppliers in Mozambique,Digital Point Load Tester in Supplier Kenya, Southren African region, Botswana, Lesotho, Malawi, Angola, Namibia, Zambia, Zimbabwe. Djibouti, Ethiopia, Kenya, Madagascar, Mauritius, Rwanda, Seychelles, Tanzania and Uganda.

Digital Point Load Tester
Description:-
Used to determine the strength values of a rock specimen both in the field and in the laboratory.
The instrument accepts core specimens up to 4” (101.6 mm) diameter which is loaded with two cones shaped points.
It consists of a load frame for applying loads up to 56 KN, on which a manual hydraulic jack is mounted.
A graduated scale indicates the distance between the conical points.
The applied load is measured by a high precision electric load cell with a digital display unit range 0-56kN proving:-
65.000 divisions
0.001 kN resolution
Linearity: 0.05%
Hysteresis: 0.03%
Repeat ability: 0.02%

The strength index (IS) is got by the formula P : D2 where P is the strength and D the space between the two conical points.
Dimensions: 400 x 530 x 720 mm.
Supplied complete with wooden carrying case, goggles, accessories.
