DC Voltmeter Manufacturer,Supplier and Exporter in India
Product Code : JL-LEP-10407

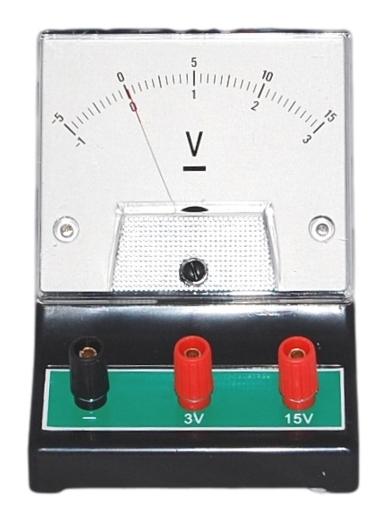

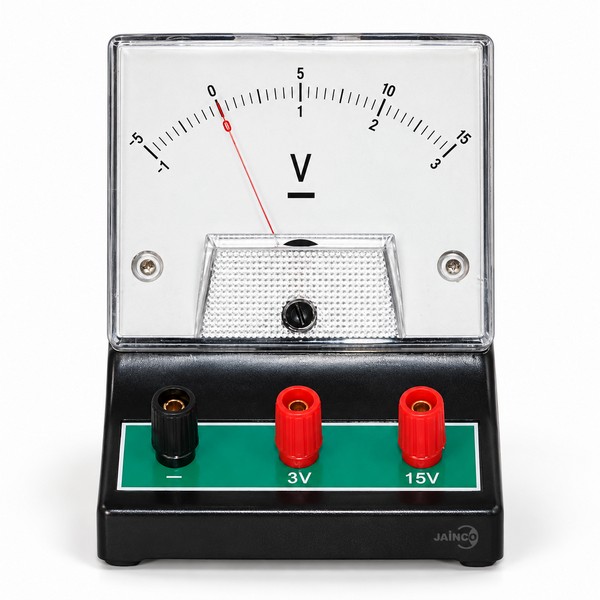

The DC Voltmeter (SKU JL-LEP-10407) is an analog, dual-range meter that measures DC voltage across components in a circuit on ranges of -1 to +3 V and -5 to +15 V, with ±2.5% full-scale accuracy. This dc voltmeter has a large 95 × 85 mm dial and colour-coded brass binding posts for 4 mm banana plugs, and pairs with the matching DC ammeter. JaincoLab manufactures it in India for school and college physics.
Specifications
The DC voltmeter has two selectable ranges, -1 to +3 V in 0.1 V divisions and -5 to +15 V in 1.0 V divisions, ±2.5% full-scale accuracy, a dial plate of at least 95 × 85 mm in a plastic case of at least 95 × 130 × 95 mm, and brass binding posts for 4 mm plugs.
| Product | DC Voltmeter |
| SKU | JL-LEP-10407 |
| Purpose | Measures DC voltage across components in an electrical circuit |
| Type | Analog, dual range selectable |
| Range 1 | -1 to 0 to +3 V, 0.1 V per division |
| Range 2 | -5 to 0 to +15 V, 1.0 V per division |
| Accuracy | ±2.5% of full scale |
| Dial plate | At least 95 mm wide × 85 mm high |
| Case | Plastic, at least 95 mm wide × 130 mm deep × 95 mm high |
| Terminals | Threaded brass binding posts for 4 mm banana plugs; black negative/common, red positive |
| Specification reference | As per DepEd guidelines |
Applications of the DC voltmeter
The voltmeter is connected in parallel across a component to read the potential difference, with the 3 V range for single cells and small circuits and the 15 V range for power-supply work.
- Measuring potential difference across cells, lamps and resistors
- Verifying Ohm’s law together with an ammeter
- Comparing voltages in series and parallel circuits
- Measuring the voltage of cells in series and parallel combinations
- Current electricity practicals in secondary and first-year college physics
Scope of supply and ordering
The listing covers one dual-range analog DC voltmeter as described in the specification table. Leads and quantities are confirmed on the quotation.
Minimum order, lead time and packing are stated on each quotation for the number of meters and the delivery destination. JaincoLab supplies physics laboratories, school groups, colleges and export buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What ranges does the DC voltmeter have?
-1 to 0 to +3 V (0.1 V per division) and -5 to 0 to +15 V (1.0 V per division).
How accurate is it?
±2.5% of full scale.
What terminals are fitted?
Threaded brass binding posts for 4 mm banana plugs, black for negative/common and red for positive.
Is a matching ammeter available?
Yes. The DC Ammeter (JL-LEP-10405) has the same dial and case size.
