Multimeter Digital Manufacturer,Supplier and Exporter in India
Product Code : JL-LEP-10420

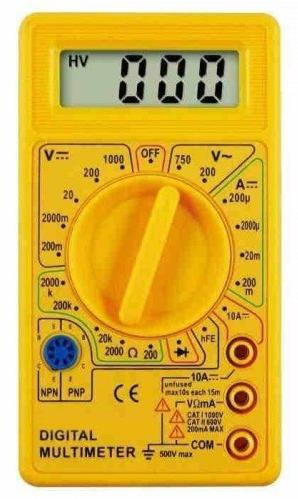

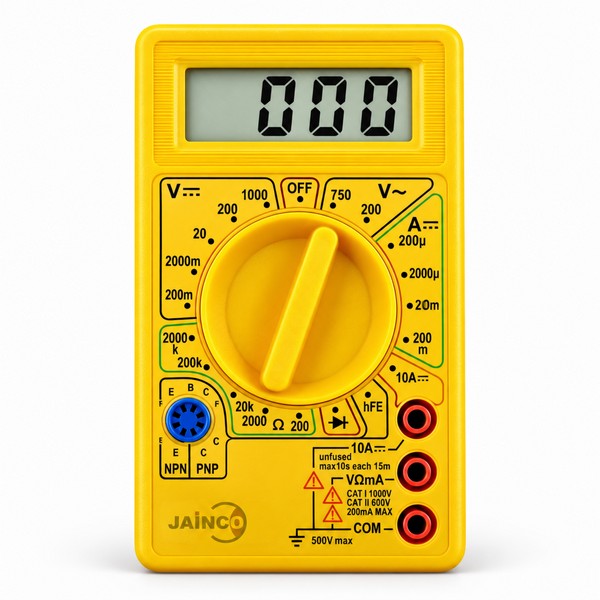

The Multimeter Digital from Jaincolab is used to provide digital readouts of measurements of AC/DC currents and voltages, resistance, capacitance and frequency. As a school laboratory equipment manufacturer, Jaincolab supplies this auto-ranging multimeter as part of a wider range of physics lab equipment used for teaching electricity and electronics measurement concepts in schools and colleges across India. It features a 6000-count display and auto range across all measurement functions.
Specification Detail
| Product Name | Multimeter Digital |
| Product Code / SKU | JL-LEP-10420 |
| Purpose | Provides digital readouts of AC/DC current, voltage, resistance, capacitance and frequency |
| DC Voltage | 60mV, 6V, 60V, 600V, 1000V ±0.7%+2 |
| AC Voltage | 600mV, 6V, 60V, 600V, 750V ±0.8%+3 |
| DC Current | 600μA, 6000μA, 60mA, 600mA ±1.2%+3 / 6A, 10A ±2.0%+10 |
| AC Current | 600μA, 6000μA, 60mA, 600mA ±1.5%+3 / 6A, 10A ±3.0%+10 |
| Resistance | 600Ω, 6kΩ, 60kΩ, 600kΩ, 6MΩ, 60MΩ ±1.2%+5 |
| Capacitance | 10nF, 100nF, 1000nF, 10μF, 100μF, 1000μF, 10mF, 100mF ±3.0%+3 |
| Frequency | 10Hz, 100Hz, 1000Hz, 10kHz, 100kHz, 1000kHz, 10MHz ±1.0%+5 |
| Duty Cycle | 0.1%-99.99% ±3.0%+2 |
| Temperature | -20 to 1000°C / -4 to 1832°F |
| Display | 6000 counts, auto range |
| Standard | As per DEPED Guidelines (manufacturer-stated) |
Key Features
- Measures AC/DC voltage, AC/DC current, resistance, capacitance and frequency from a single handheld unit
- Wide DC voltage range from 60mV up to 1000V and AC voltage up to 750V
- Current measurement from 600μA up to 10A on both AC and DC ranges
- Resistance measurement from 600Ω up to 60MΩ for a broad range of circuit components
- Also measures duty cycle and temperature from -20°C to 1000°C
- 6000-count display with auto range for quick, accurate readings without manual range selection
Why Choose Jaincolab
Jaincolab is a school laboratory equipment manufacturer and exporter supplying schools, colleges and institutions across India and internationally. Every Multimeter Digital is checked for accurate readings across all measurement functions before dispatch. As specialists in physics lab equipment for electricity and electronics measurement, we supply this multimeter alongside related classroom resources including the Galvanometer and the Dry Cell 9 Volts, so schools can standardise on one trusted source of science teaching equipment. Browse our full Laboratory Equipment Products collection for the complete range.
Certifications: manufacturer-stated ISO 9001:2015 and ISO 14001:2015 — verify before publishing.
Applications
| Application | Use Case |
|---|---|
| Circuit Voltage Measurement | Measuring AC and DC voltage across circuit components in classroom experiments |
| Current Measurement | Measuring AC and DC current in series with a circuit under test |
| Resistance Checking | Verifying resistor values and checking continuity in circuit components |
| Capacitance and Frequency Testing | Measuring capacitor values and signal frequency in electronics experiments |
| Electricity and Electronics Curriculum | Supporting curriculum topics on electrical measurement and circuit analysis |
Frequently Asked Questions
Q1: What can this multimeter measure?
A1: It provides digital readouts of AC/DC current, AC/DC voltage, resistance, capacitance and frequency.
Q2: What is the maximum voltage it can measure?
A2: It measures DC voltage up to 1000V and AC voltage up to 750V.
Q3: Does it have auto ranging?
A3: Yes, it features auto range across measurement functions with a 6000-count display.
Q4: Can it measure temperature?
A4: Yes, it measures temperature from -20°C to 1000°C (-4°F to 1832°F).
Q5: Does it meet an educational standard?
A5: Yes, it is supplied as per DEPED Guidelines (manufacturer-stated).
Request a Quote
Need Multimeter Digital or other physics lab equipment for your school or lab? Request a Quote from Jaincolab, a school laboratory equipment manufacturer serving customers across India and internationally.
