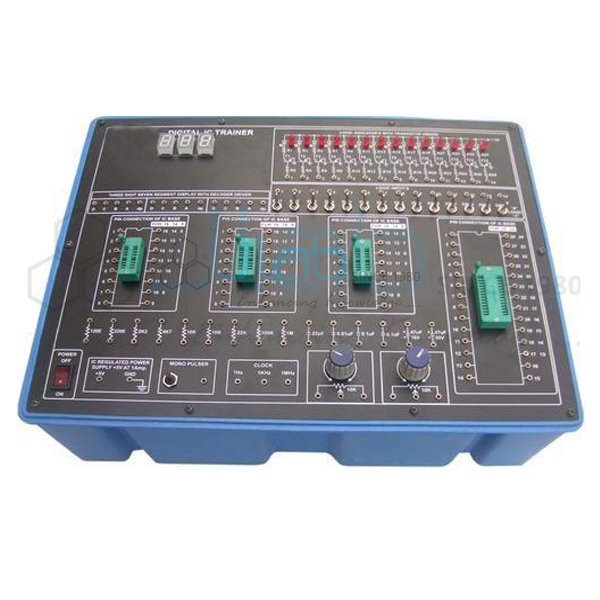

Digital IC Trainer

Product Code : JA-DET-1518
Jainco Lab is a leading Digital IC Trainer Manufacturer,and suppliers in India, Digital IC Trainer Manufacturer,and suppliers in South Africa.Digital IC Trainer Suppliers in Mozambique,Digital IC Trainer in Supplier Kenya, Southren African region, Botswana, Lesotho, Malawi, Angola, Namibia, Zambia, Zimbabwe. Djibouti, Ethiopia, Kenya, Madagascar, Mauritius, Rwanda, Seychelles, Tanzania and Uganda.

Digital IC Circuits

The board is designed to train students of Engineering Colleges & Polytechnic Laboratories, in Digital IC circuits.

Digital IC Trainer is a completely self contained, most versatile, sophisticated and economical.

The board is absolutely self contained and requires no other apparatus.

Practical experience on this board carries great educative value for Science and Engineering Students.


Fully self sufficient with IC Regulated 5V at 1Amp. Power Supply, input logic switches, clock generator, mono pulser

LED logic indicators, 3 digit Seven Segment Displays and provision to take-out output for monitoring

Sockets for ICs, reliable connections using excellent quality sockets

Wiring of all types of experiments become simple and less time consuming

Adequate no. of other Electronic Components

The unit is operative on 230V ±10% at 50Hz A.C. Mains

Adequate no. of patch cords stackable from rear both ends 2mm spring loaded plug length ½ metre

Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggest

tons and Book Refer OMEGA TYPE LTB-817 ences.

Two copies each with the trainer board

Weight : 8 Kg. (Approx.)

Dimension : W 412 x H 150 x D 310


+ 5V D.C. at 1Amp, IC Regulated Power Supply

Eight, two position toggle switches prewired to give binary logic input states

Eight, LED logic indicators with transistor drivers

3 digit Seven Segment Displays with decoder driver

Clock :- 1 Hz, 1 kHz and 1 MHz

Single pulse from mono pulser

IC Bases :

16 Pin DIP/ZIF : 3 Nos

28 Pin DIP/ZIF : 1 Nos
