Training Board for Gates

Product Code : JA-DET-1519
Jainco Lab is a leading Training Board for Gates Manufacturer,and suppliers in India, Training Board for Gates Manufacturer,and suppliers in South Africa.Training Board for Gates Suppliers in Mozambique,Training Board for Gates, Training Board for Gates Montenegro, Training Board for Gates (Podgorica), Training Board for Gates Morocco (Rabat), Training Board for Gates Mozambique (Maputo), Training Board for Gates Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nicaragua (Managua), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Romania (Bucharest), Rwanda (Kigali), Samoa (Apia), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Seychelles (Victoria), Sierra Leone (Freetown), Slovakia (Bratislava), Somalia (Mogadishu), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.), Uruguay (Montevideo), Uzbekistan (Tashkent), Venezuela (Caracas), Vietnam (Hanoi), Yemen (Sana'a), Zambia (Lusaka), Zimbabwe (Harare) .

Training Board for Gates

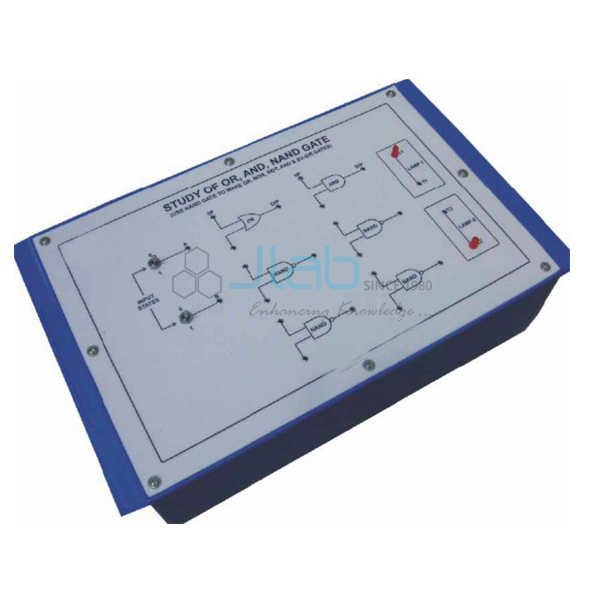

Computer Logic Training Board has been designed specifically to study OR, AND, NOT, EX-OR & NAND logic gates and to verify the truth table of various logic functions by using universal NAND gates.

The board is absolutely self contained and requires no other apparatus.

Practical experience on this board carries great educative value for Science and Engineering Students.

Object

To Study the OR, AND & NAND logic gates and to verify the truth tables

To make various logic functions (OR, NOR, NOT, AND & EX-OR gates) by using NAND gates and verify their truth tables

Features

The board consists of the following built-in parts :

+ 5V D.C. at 100mA, IC Regulated Power Supply internally connected

Four, 2-input NAND gates

2-input OR gate

2-input AND gate

Two switches for giving binary logic input states

Two LEDs, driven by LED driver circuit for visual indication of output

Adequate no. of other Electronic Components

Mains ON/OFF switch, Fuse and Jewel light

The unit is operative on 230V ±10% at 50Hz A.C. Mains

Adequate no. of patch cords stackable from rear both ends 4mm spring loaded plug length ½ metre

Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections / observation of waveforms

Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book

Weight: 3 Kg. (Approx.)

Dimension: 340 (W) x 110 (H) x 210 (D)
