Digital Multiplexer

Product Code : JA-DET-1523

Digital Multiplexer

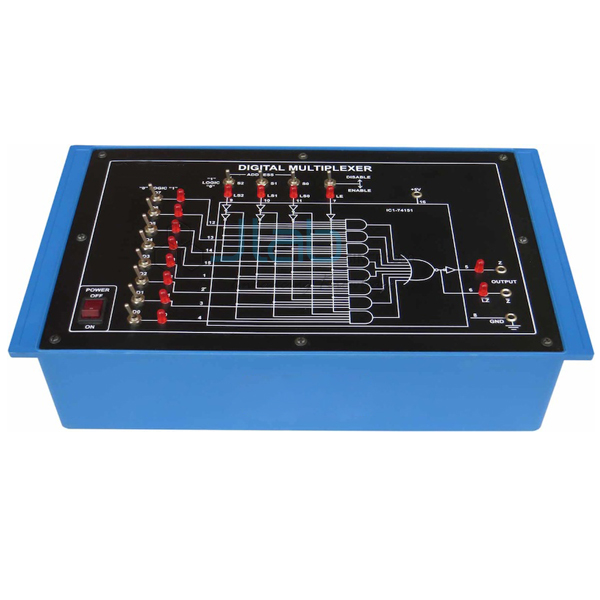

This Training Board gives a better understanding of the phenomena of multiplexing with eight input signals and one multiplexed output using three control signals.

The board is absolutely self contained and requires no other apparatus.

Practical experience on this board carries great educative value for Science and Engineering Students.

Object:

To Study 8-bit Digital Multiplexer with 8 inputs & one multiplexed output using IC 74151

Features:

The board consists of the following built-in parts:

+ 5V D.C. at 50mA , IC regulated power supply internally connected

Multiplexer IC 74151

LEDs for visual indication of status

SPDT switches for logic selection

Adequate no. of Electronic Components

Mains ON/OFF switch, Fuse and Jewel light

The unit is operative on 230V ±10% at 50Hz A.C. Mains

Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections / observation of waveforms

Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
