Logic Gates Circuit Trainer Manufacturer,Supplier and Exporter in India

Product Code : JA-BT-1492
Jainco Lab is a leading Logic Gates Circuit Trainer Manufacturer,and suppliers in India, Logic Gates Circuit Trainer Manufacturer,and suppliers in South Africa, Logic Gates Circuit Trainer Algeria (Algiers), Logic Gates Circuit Trainer Angola (Luanda), Logic Gates Circuit Trainer Argentina (Buenos Aires), Logic Gates Circuit Trainer Armenia (Yerevan), Logic Gates Circuit Trainer Australia (Canberra), Logic Gates Circuit Trainer Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

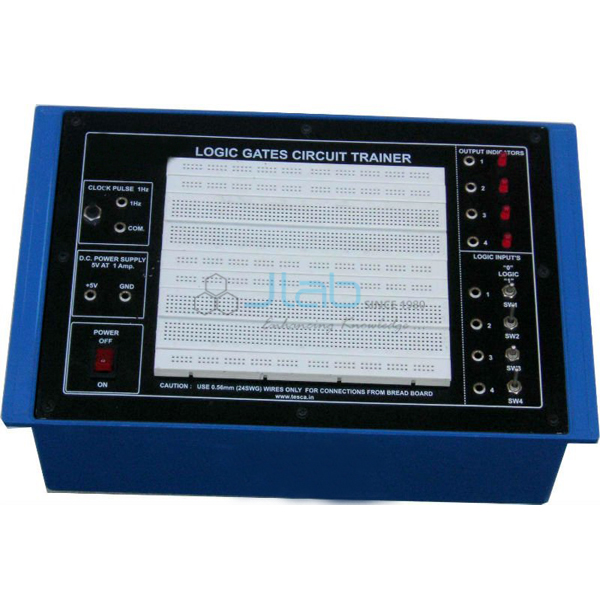

Logic Gates Circuit Trainer

Specifications:

Output D.C. Voltage:

Fixed 5V ±1%

Output current:

1 Amp

Load regulation:

±1% of the highest specified output voltage
(No load to full load)

Line regulation (For ±10% change:

less than 50 mV. in mains Voltage i.e. 230V)

Ripple and noise:

less than 5 mV

Clock input device:

Clock pulse of 1 second

Debounced logic switches (HI/LO):

Four nos. Input voltage of HI level ³ 2.25V. Input voltage of LO leve £ l 0.8V

4 Bits led output indicator:

Maximum input voltage less than or equal to 5V D.C.

Solder less bread board:

Bread Board having one main strip, total interconnected 640 tie points for ICs and half main strip, total interconnected 320 tie points for power supply, Clock, Input and output state.
Each strip having length 173mm and accepting dia 0.56mm/24SWG recommended, use only 22-26 SWG wire for interconnections
Basic logic gates &:
Four AND gates, Four OR gates, Four NAND gates, Four NOR gates, Six NOT
Flip flop units gates, Dual J-K flip-flop, J.K. master/slave flip-flop & Dual D-type flip flop

Applications:

Verification of AND, OR, NOT, NAND, NOR Gates & their truth table.
Verification of Boolean algebra.
The half-adder and full-adder design.
Verification of D-type flip-flop and truth table.
Verification of JK flip-flop and truth table.
Verification of Dual JK Master/Slave flip-flop and truth table

Features:

The unit is operative on 230V ±10% at 50Hz A.C. Mains
Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References
