Digital Trainer Manufacturer,Supplier and Exporter in India
Product Code : JA-BT-1483

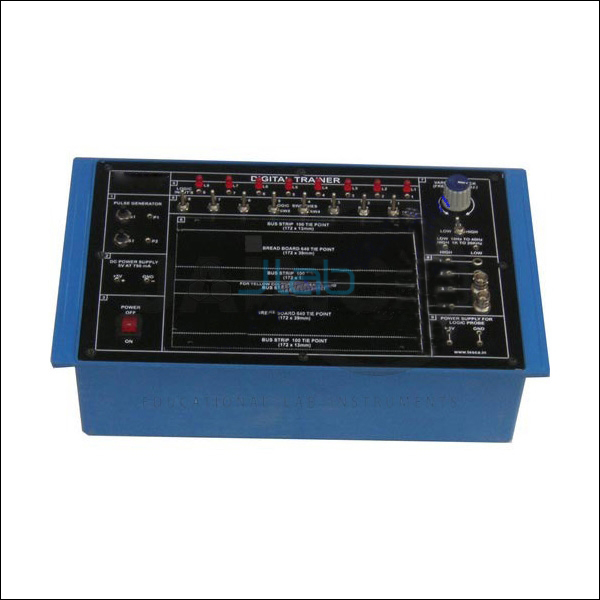

Digital Trainer
Experiment Coverage:
- LED Display
- Getting a Pulse
- Setting a Logic Level
- Getting a Clock and using the Logic Probe
- AND Gate (static operation)
- OR Gate (static operation)
- Dynamic Operation of AND Gate and OR Gate
- NOT Gate
- NAND Gate
- NOR Gate
- Exclusive OR Gate (Also called XOR Gate)
- XNOR
- Three State Buffer
- RS Latch
- Basic JK Flip Flop
- Mono stable Multi vibrator
- Asynchronous UP/DOWN Counter
Specifications:
Breadboard:
- Solder less Bread board with 1680 inter connected Tie Points
Pulse Switches:
- 2 No’s. Bounce free push buttons
Logic Switches:
- 8 logic level Switches in Dip type
Power Supply:
- Fixed: +5V at 750 mA
05. Power Sockets:
- Logic Probe Power Supply Sockets
Logic Input:
- 8 LED buffered logic level indicators
Variable Clock:
- Fine adjustment of clock frequency
Clock range selection L:
- 10 – 40 Hz, H : 1K – 20K Hz
Jacks:
- 2mm to BNC Socket 2 No.
- 2mm to 4mm Socket 2 No
Components Provided:
- ICs - 4001/1, 7400/3, 7402/1, 7404/1, 7408/1,
- 7432/1, 7476/2, 7486/1, 74126/1, Resistors 1/4W
- ±5% 230E/1, 10K/1, 39K/1, LED 5mm/1
Accessories:
- Mains cord, 2mm Red & Black patch cords 5 each and 2mm to 1mm Red & Black 5 each
Instruction manual:
- Strongly supported by detailed operating instructions
- Logic Probe Omega Type LP-002 with 2mm Banana Pin Qt.1 Provided
- Wiring of all types of experiments become simple and less time consuming
- The unit is operative on 230V ±10% at 50Hz AC Mains
