Digital Lab Manufacturer,Supplier and Exporter in India
Product Code : JA-BT-1481

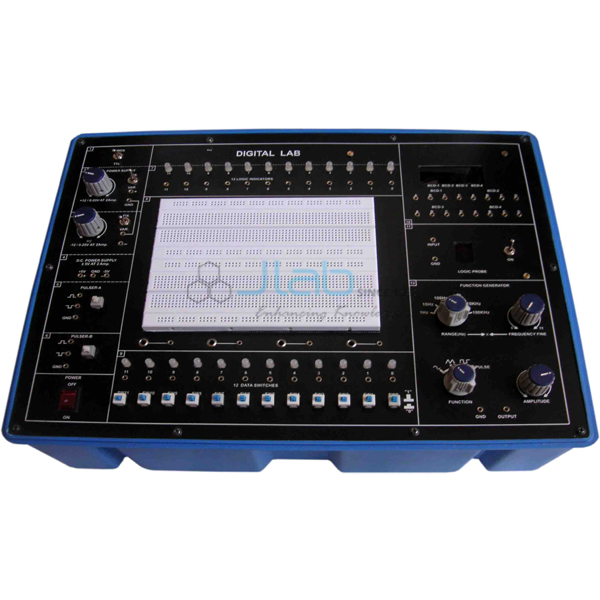

The digital lab is a compact breadboard trainer for building regular digital circuits with solder-less interconnections, with clock generators, logic level input and output indicators and DC regulated power supplies built in. Its 2 mm brass terminals accept optional modules, and the listed experiments run from logic gates and code converters to counters, shift registers and CMOS-TTL interfacing (SKU JA-BT-1481).
Specifications
The digital lab is listed with:
| Product | Digital Lab |
| SKU | JA-BT-1481 |
| Circuit building | Solder-less breadboard interconnections |
| Terminals | 2 mm brass terminals and patch cords, compatible with optional modules |
| Built in | Clock generators; logic level input and output indicators; DC regulated power supplies |
| Supplied with | Enclosure, mains cord, patch cords, instruction manual and component set |
| Weight | 0.7 kg approx. |
| Dimensions | W 176 x H 131 x D 37 mm |
Experimental coverage
The listed experiments include:
- Logic gate operation, dual nature of logic gates and De Morgan's theorem
- Binary to Gray, Gray to binary and binary to excess-3 code conversion
- Binary adder, subtractor and multiplier; EX-OR gate implementation and applications
- RS, JK, D and T flip-flops; Johnson counter; 4-bit binary up/down counter
- Multiplexer and demultiplexer; 8-to-3 line encoder; 3-to-8 line decoder
- SIPO shift register; CMOS-TTL interfacing; crystal oscillator; pulse stretcher circuit
Scope of supply and ordering
The listing covers the digital lab with its mains cord, patch cords, instruction manual and component set, supplied by JaincoLab; optional modules are quoted separately.
Frequently asked questions
What is supplied with the digital lab?
The trainer in its enclosure with a mains cord, patch cords, an instruction manual and a component set.
Can extra modules be connected?
Yes. The 2 mm brass terminals and patch cords make it compatible with the optional modules.
How large is the digital lab?
About W 176 x H 131 x D 37 mm, weighing about 0.7 kg.
Related products
See the breadboard trainer range for other items in this family.
Request a quote
Request a quotation for the Digital Lab (SKU JA-BT-1481) through the JaincoLab contact page. Tender and project enquiries can be sent through the tenders page.
