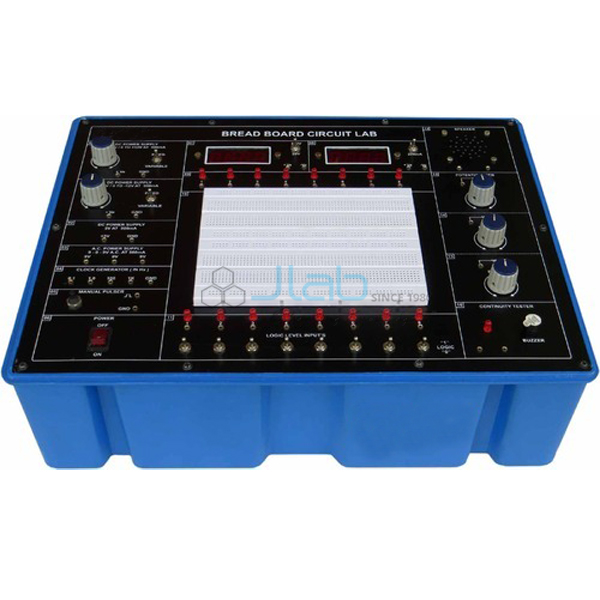

Bread Board Circuit Lab

The Trainer Cover The Following Experiment:

Study of basic gates and verification of their truth tables
Study and verifications of the law of Boolean algebra and De-Morgan’s theorems
Study of important TTL terminologies. Verification of important TTL Circuit parameters
Construction and verification of various types of flip - flops using gates and IC’s
Construction and verification of various types of combinational circuits
Construction and verification of various types of counters
Construction and Verification of 4 Bit Universal Shift Register
Many other experiments are possible using the on board components and Bread board

Special Feature:

Bread boards:

Unique solder-less large size, spring loaded breadboard consisting of two Terminal Strips with 1280 tie points and 4 Distribution Strips with 100 tie points each, totaling to 1680 tie points. (Size:112mm x 170mm approx)

IC based DC Reg.:

(a). +12 V / 500 mA (fixed and with facility to vary from 0 to +12 V)
(b). -12 V / 500 mA (fixed and with facility to vary from 0 to -12 V).
(c).+ 5V ± 0.25V / 500mA (fixed)

Digital meters:

(a). Dual range DC voltmeter (20 V / 200V). (3.5 Digit)
(b). Dual range DC current meter (200 mA / 2A)

Continuity Tester:

Audio / Visual indication

Clock Generators:

(a). 0.1Hz, b. 1Hz, c. 100Hz, d. 1KHz.
Simultaneous independent fixed TTL ( 5V ) outputs

Manual Pulser:

One independent buffered bounce less manual pulser (useful for freezing the action of each stage of the counter after every clock pulse)

Logic Level Inputs:

Eight independent buffered logic level inputs to select High / Low TTL levels, each with a LED to indicate high / low status and termination

Logic Level:

Eight independent buffered logic level indicators for High / Low status indication Indicators of digital outputs

AC Supplies:

9 - 0 - 9 V AC / 500 mA

Speaker:

8 ohms miniature speaker with terminations

Potentiometers:

3 Potentiometers ( 1K, 10K and 100K ) with terminations

Power ON:

Power ON switch with indicator for mains on indication and fuse for protection

Patch Cords:

Set of 25 assorted colored single stand hook - up wires.
Set of 15 assorted colored multi - stand wires with 2mm stackable plug termination at one end & hook-up wire termination at the other end

Components provided:
