Electro Hydraulic Trainer Manufacturer,Supplier and Exporter in India
Product Code : JA-MLE-9001

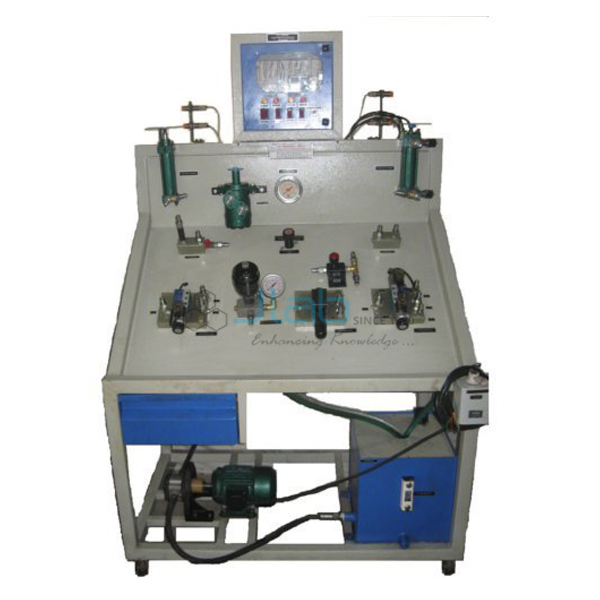

The Electro Hydraulic Trainer (SKU JA-MLE-9001) is an electro hydraulic trainer in which AC solenoid valves control a double acting cylinder, alongside a manual hand lever valve for comparison. It works at about 40 bar with a flow rate of about 4-8 litres per minute, from a gear pump coupled to a 2 HP, 220 V induction motor mounted on anti-vibration pads over a 20 litre tank. It is manufactured by JaincoLab for fluid power and mechatronics labs.
Specifications
The trainer runs at about 40 bar and 4-8 LPM from a 2 HP 220 V motor-driven gear pump on a 20 L tank, with 4/3 double solenoid, 4/2 single solenoid and 4/3 hand lever valves and a 32 mm x 100 mm double acting cylinder.
| Product | Electro Hydraulic Trainer |
| SKU | JA-MLE-9001 |
| Operating pressure | 40 bar (approx.) |
| Flow rate | 4 - 8 LPM (approx.) |
| Hydraulic tank | 20 litres |
| Pump | Geared pump coupled to 2 HP, 220 V AC, 50 Hz induction motor, mounted over the tank on anti-vibration pads |
| Solenoid valves | 4/3 double solenoid (AC); 4/2 single solenoid (AC) |
| Manual valve | 4/3 way hand lever valve |
| Cylinder | Double acting, 100 mm stroke, 32 mm diameter |
Applications of the electro hydraulic trainer
Students control a cylinder first with a hand lever valve and then with single and double solenoid valves, learning how electrical signals take over hydraulic control in automated machines.
- Solenoid valve control of a double acting cylinder
- Comparing manual and solenoid direction control
- 4/3 and 4/2 valve centre and spring-return functions
- Electrical control circuits for hydraulics
- Fluid power and mechatronics practicals in B.Tech, diploma and ITI courses
Scope of supply and ordering
The listing covers the electro hydraulic trainer with power pack, valves and cylinder as listed. Hydraulic oil, hoses and the electrical control panel details are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
There is no fixed MOQ on this listing: minimum quantity, lead time and packing are stated on the quotation for your order size and destination. Bulk college, polytechnic and tender orders are supplied.
Frequently asked questions
What pressure and flow does it work at?
About 40 bar and 4 to 8 litres per minute.
Which valves are fitted?
A 4/3 double solenoid valve, a 4/2 single solenoid valve and a 4/3 hand lever valve.
What cylinder is used?
A double acting cylinder of 32 mm diameter and 100 mm stroke.
